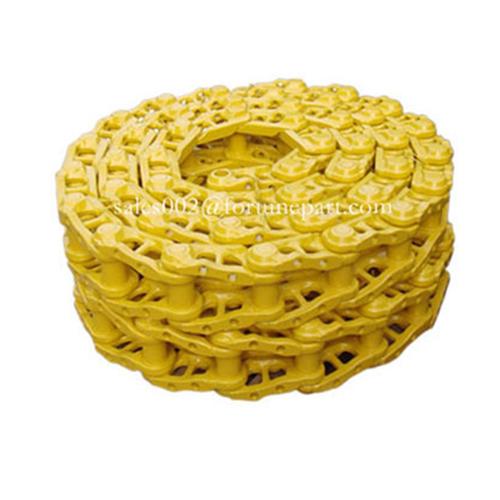

Caterpillar bulldozer D6C D6D D6H D6T D6R crawler undercarriage parts track link chain assy
D6C D6D dozer lubricated track chain assy Berco number is CR3176,CR6010,CR3307,CR3309
Track link assy OEM alternative part number is 2Y4377,6P6131,7S9568
Dozer master links use Boron steel forgings,polyurethane dish seals,extreme pressure synthetic grease and T style master pins for easy installation,each part of the track link assembly constributes to the strength and extended service life.
| Xiamen Fortune Industrial Co., Limited | |
| Product Name | Caterpillar crawler dozer undercarriage spare parts track link chain assy for construction machinery |
| Production Standard | OEM |
| Material | 40MnB/35MnB purchased from first class steel plant |
| Finish | Smooth |
| Painting Color | Black or yellow |
| Process | Forging |
| Surface Hardness | HRC52-58, Depth:8mm-12mm |
| Quality Guarantee | One Year |
| Certification | ISO9001-9002 |
| Delivery Time | Within 10--20 days after sales contract establishment |
| Package | Fumigate seaworthy packing and Export Standard Package |
| Payment Term | TT, L/C, Paypal, Western union,D/P |
| Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
| Our dozer salt track chain assy advantage(Why Choose our undercarriage parts) |
| 1.Quench-tempering processes to guarantee genuine mechanical properties |
| 2. High hardness :HRC52-58,deepth:8mm-12mm |
| 3. Deep hardened wear surface |
| 4. High strength and superior wear resistence to bending and breakage |
| 5.Strict Quality Control |
| 6.Precise design and carefully manufactured |
| 7.Certificated by ISO9001:2008 |
| 8.Produce as per client's samples,designs and drawings |
Our excavator and bulldozer master chain production main certificate

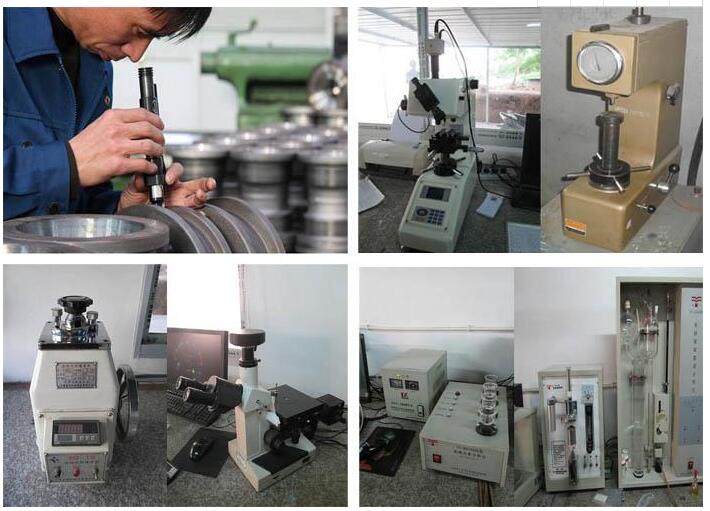

Excavator and dozer undercarriage parts inspection equipment
Caterpillar D6C D6D dozer track chain assy technical drawing
Hot selling excavator and dozer undercarriage parts
Crawler excavator and dozer model list
| MAKES | APPLICABLE MACHINES |
| CATERPILLAR |
E70B E110B
E120B E307 E308
E311B E180 E240 E200B E300 E320 E322 E330 E340 E345 E350 E450 CAT215 CAT225 CAT235 D3B D3C D4C D4D D4E D5 D5H D6C D6D D6H D6R D6T D7G D7H D7R D8N D8R D8T D8L D9N D9R D10N D10T D11N |
| KOMATSU |
PC20 PC25
PC30 PC40 PC60
PC100 PC120 PC200 PC220 PC240 PC300 PC350 PC360 PC400 PC450 PC650 PC750 PC1000 D20 D21 D30 D31 D40 D41 D50 D53 D55 D60 D65 D85 D155 D275 D355 D375 |
| HITACHI |
EX30 EX40
EX45 EX50 EX75
EX100 EX120 EX200 EX220
EX285 EX300 EX330 EX400 EX450
EX550 EX650 EX700 EX750 EX1100 EX1200 ZX50 ZX75 ZX200 ZX230 ZX240 ZX270 ZX300 ZX330 ZX450 |
| JCB | JS120 JS130 JS200 JS205 JS220 JS330 JS360LC JS460 |
| KOBELCO |
SK60 SK100
SK120 SK210 SK220
SK230 SK250 SK270 SK300 SK310 SK320 SK330 SK400 K904 K907 SK07 SK04N2 SK07N2 SK09N2 |
| VOLVO | EC140 EC210 EC240 EC290 EC360 EC380DL EC460 |
| HYUNDAI | R60 R130 R200 R210 R220 R290 R320 R330 R450 |
| DAEWOO | DH55 DH130 DH180 DH200 DH220 DH280 DH300 |
| DOOSAN |
DX140 DX180
DX220 DX225 DX235
DX255 DX300 DX340
DX380 DX420 DX480
DX520 |
| KATO | HD250 HD400 HD450 HD700 HD770 HD820 HD1250 |
| SUMITOMO |
SH100 SH120
SH200 SH220 SH250
SH260 SH280 SH300 SH340 SH430 SH580 LS1200 LS1600 LS2035 LS2050 LS2650 LS2800 LS3400 LS4300 LS5800 |
| SAMSUNG | SE130 SE210 SE280 SE350 |
| FIAT-HITACHI | FH120 FH200 FH220 FH300 FH330 |
| LIEBHERR |
PR724 PR734
R901 R902 R934
R941 R942 R944
R945 R952 R954 R971 R974 R981 R982 R984 |
| CASE | CX120 CX130 CX210 CX240 CX330 CX360 |
| NEW HOLLAND |
E135 E145B
E165 E175 E215LC
E235 E245B E265 E305LC E385LC E485 |
| BOBCAT | BOBCAT 325 BOBCAT 418 E26 E32 E35 E42 |
Caterpillar excavator and dozer track link chain part number and Berco number list
| Chain/Track Link | |||||
| Caterpillar Bulldozers | |||||
| MODEL | DESCRIPTION | PITCH | KUT No. | BERCO No. | OEM No. |
| D2 | LINK(35L) 1/2 | 155.57 | KU039-N2-35 | LH1A/35 | |
| LINK(35L) 9/16 | 155.57 | KU039-N0-35 | AK13 | ||
| D3B | LINK(39L) | 155.57 | KU040-P0-39 | CR3657 | |
| D3C | LINK(36L, SPLIT) | 155.57 | KU040-S0-36 | CR4749 | |
| LINK(36L, LUB) | 155.57 | KU040-L0-36 | CR4746 | ||
| D3G | 155.57 | KU040-L2-00 | CR6616 | ||
| D4D | LINK(38L, STD)5/8 | 171.45 | KU041-P0-38 | CR2849/CR4858 | |
| LINK(36L, STD)9/16 | 171.45 | KU041-P1-00 | CR2567B | ||
| D4E | LINK(36L, SPLIT) | 171.45 | KU041-S0-35 | CR3628 | |
| LINK(38L, LUB) | 171.45 | KU041-L0-38 | CR3519 | ||
| D4H | LINK(39L, LUB) | 171.5 | KU046-L0-39 | CR5192 | |
| D5 | LINK(39L, STD) | 175.4 | KU042-P0-39 | CR2823 | |
| LINK(39L, SPLIT) | 175.4 | LU042-S0-39 | CR3627 | ||
| LINK(39L, LUB) | 175.4 | KU042-L0-39 | CR3520 | ||
| D5H | LINK(37L, LUB) | 190 | KU047-L0-37 | CR4805 | |
| D6B | LINK(40L, STD) | 171.5 | KU063-W0-40 | CR1998 | |
| D6H | LINK(39L, LUB) | 202.8 | KU048-L0-39 | CR4810 | |
| D6C/D | LINK(36L, STD) | 203.2 | KU043-W0-36 | CR3176/CR6010 | |
| LINK(36L, SPLIT) | 203.2 | KU043-S0-36 | CR3307 | ||
| LINK(36L, LUB) | 203.2 | KU043-L0-36 | CR3309 | ||
| D6H | 203.2 | KU048-L0-00 | CR6587 | ||
| D7 | LINK41L) | 203.2 | KU079-W1-41 | CR1769/CR5060 | |
| D7H | LINK(40L, LUB) | 215.9 | KU049-L0-40 | CR5069 | |
| D7G | LINK(49L, STD) | 215.9 | KU044-W1-49 | CR4235 | |
| LINK(38L, STD) | 215.9 | KU044-W0-38 | CR2576 | ||
| LINK(38L, SPLIT) | 215.9 | KU044-S0-38 | CR3308 | ||
| LINK(38L, LUB) | 215.9 | KU044-L0-38 | CR3116 | ||
| D8H,K | LINK(41L, STD) | 229 | KU045-W0-41 | CR2877 | |
| LINK(41L, SPLIT) | 229 | KU045-S0-41 | CR2701 | ||
| LINK(41L, LUB) | 229 | KU045-L0-41 | CR3149 | ||
| D8N(D8R) | LINK(44L, LUB) | 215.9 | KU034-L0-44 | CR4525 | |
| D9G,D9H | LINK(39L, STD) | 260.4 | KU035-W0-39 | CR2154 | |
| LINK(39L, SPLIT) | 260.4 | KU035-S0-39 | CR2672 | ||
| LINK(39L, LUB) | 260.4 | KU035-L0-39 | CR3153 | ||
| D9L | 228.6 | KU137-L0-00 | CR6446 | ||
| D9N | LINK(43L, LUB) | 240 | KU036-L0-43 | CR4653 | |
| D10N | LINK(44L, LUB) NON PPR | 260 | KU037-L0-44 | ||
| LINK(44L, LUB)PPR | KU037-L1-44 | CR5038 | |||
| D4E-EWL/943 | LINK(38L, LUB) | 171.07 | KU041-E0-38 | CR4261 | |
| D5B-EWL/953 | LINK(40L, LUB) | 175.4 | KU042-E0-40 | CR4264 | |
| D6D-EWL/963 | LINK(36L, LUB) | 203.2 | KU043-E0-36 | CR4267 | |
| D7G-EWL/973 | LINK(40L, LUB) 3/4 | 215.9 | KU044-E0-40 | CR4268 | |
| LINK(40L, LUB) 7/8 | 215.9 | KU044-E1-40 | CR4700 | ||
| D4H-HD,D5M | LINK(44L, LUB) | 171.5 | KU046-D0-44 | CR5552 | |
| D5H-HD,D6M | LINK(46L, LUB) | 190 | KU047-D0-46 | CR5465 | |
| D6H-HD, D6R | LINK(45L, LUB) | 203.2 | KU048-D0-45 | CR5534 | |
| D7R | LINK(40L, LUB) | 215.9 | KU049-D0-40 | CR5574 | |
| Caterpillar Excavators | |||||
| MODEL | DESCRIPTION | PITCH | KUT No. | BERCO No. | OEM No. |
| E70 | LINK(42L) | 135 | KU085-P0-42 | MT24/42 | 1028077 |
| E311 | LINK(41L) | 171.45 | KU061-P1-41 | CR4854/41 | 4I7479 |
| CAT213/215 | LINK(49L) | 171.45 | KU041-P0-49 | CR2849/49 | |
| E110 | LINK(43L) | 171.45 | KU121-P0-43 | CR1766/43 | |
| CAT225 | LINK(43L) | 171.1 | KU122-N0-43 | CR4858 | |
| CAT225B | LINK(46L) | 175.5 | KU042-P0-46 | CR5035 | 5A5293 |
| CAT225D | LINK(49L) 19.3mm | 190 | KU030-P2-49 | CR5011 | 6Y8184 |
| CAT320 | LINK(45L) | 190 | KU030-P0-45 | CR5350/45 | 9W9354 |
| CAT325 | LINK(45L) | 203 | KU031-P0-45 | CR5489/CR6296 | 6Y0854 |
| CAT330 | LINK(45L) | 215.9 | KU032-P0-45 | CR5936/45 | 6Y2755 |
| CAT235 | LINK(49L) | 215.9 | KU044-W1-49 | CR4235 | 8E4274 |
| CAT345B | 215.9 | KU038-P1-00 | CR6594 | ||
| CAT245 | 228.6 | KU045-W1-00 | CR3127 | ||
| CAT245B | 260.4 | KU127-W0-00 | CR4200 | ||
| CAT350 | 228.6 | KU123-W0-00 | CR6396 | ||
| CAT375-undev | 260 | KU128-W0-00 | CR6363 | ||
| CAT385-undev | 260 | KU129-W0-00 | |||
FAQ
1.What Xiamen Fortune Industrial Co.,Limited supply?
We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.
2.How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions
3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
We have an excellent QC system, the QC team will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.
4.What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
Choose genuine quality dozer track link for construction machinery parts,
Fortunepart will be your best undercarriage parts supplier in China.
