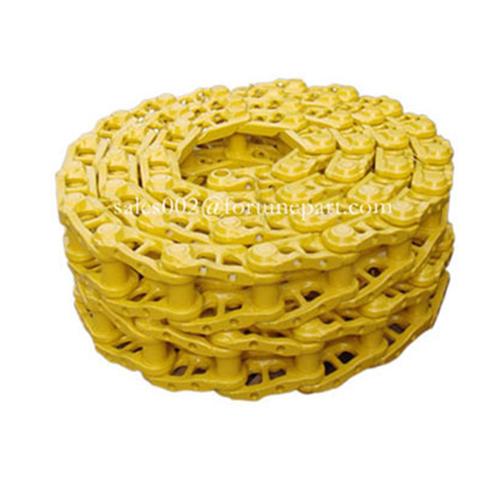

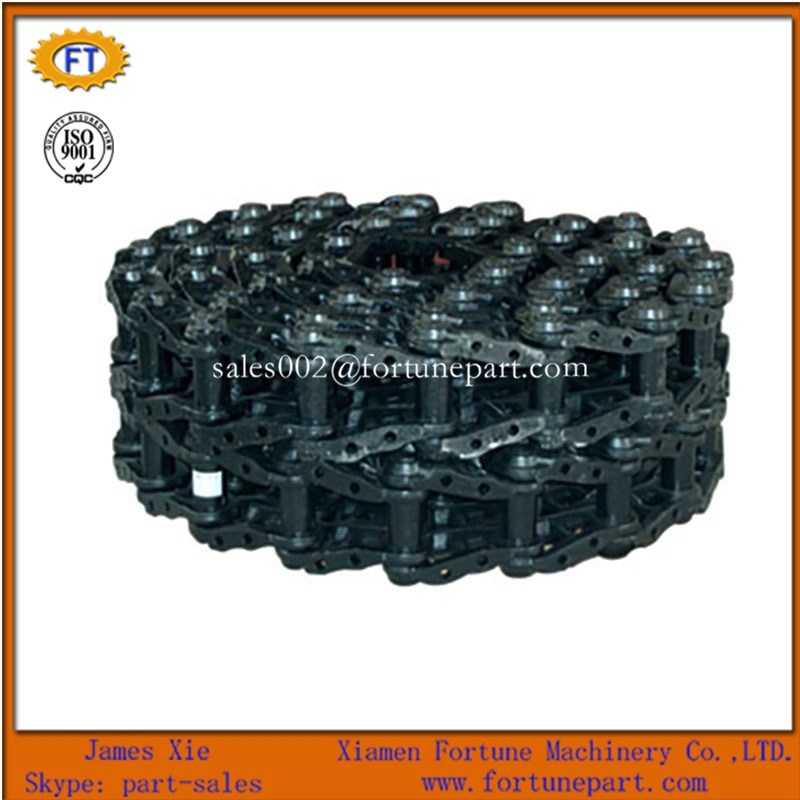

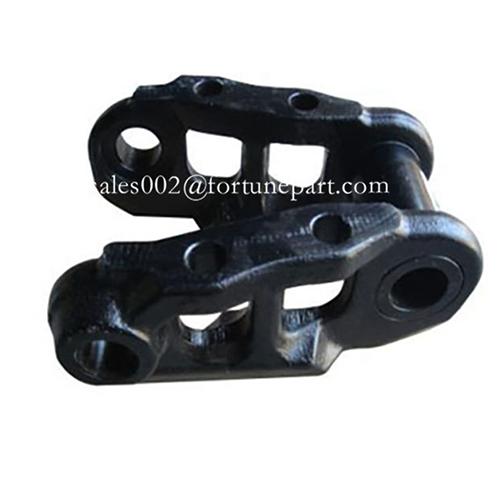

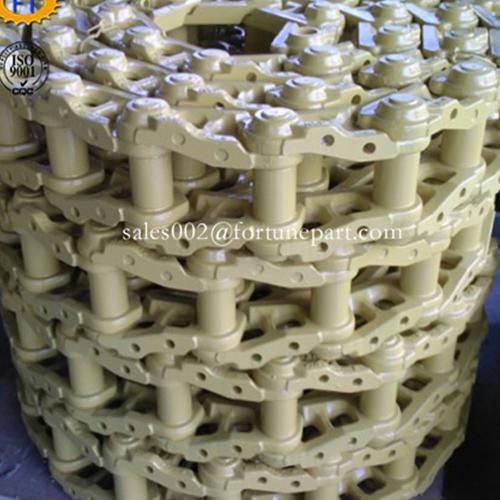

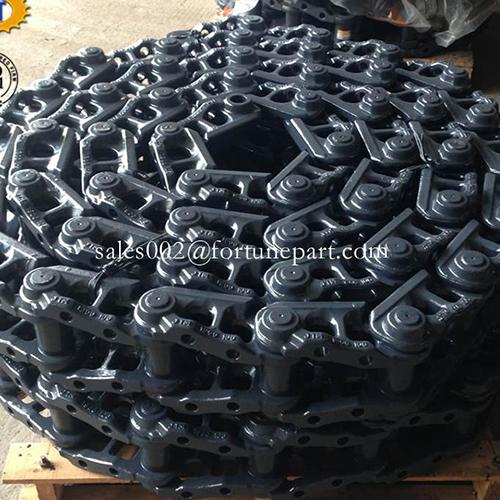

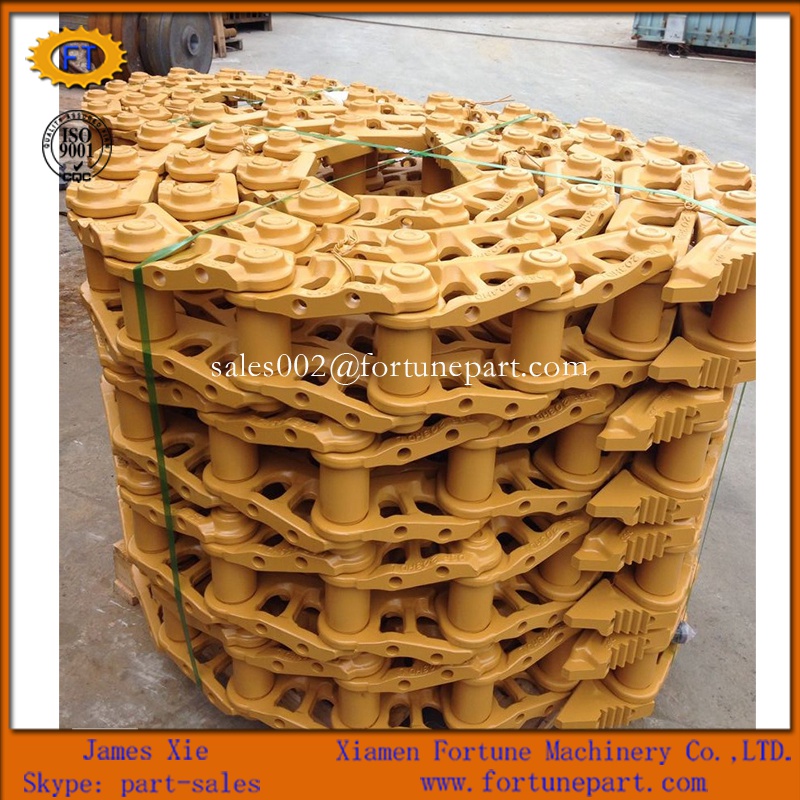

Heavy machine Caterpillar crawler dozer D8R D8T D8N undercarriage parts LUB split track link assy for repair and aftermarket replacement
Earth Moving heavy equipment Track chain, is also named excavator track link,track link assembly,track chain assy,link assembly,
Bulldozer chain has two types,dry track chain and split lubricated track chain.
Dozer lubricated track chain includes link sections and track pin and bush and master link.
our track chain has high surface hardness,deep hardened depth,greater wear resistance and longer wear life.
| Xiamen Fortune Industrial Co., Limited | |
| Product Name | Caterpillar crawler excavator undercarriage spare parts track link chain assy for mining |
| Production Standard | OEM |
| Material | 40MnB/35MnB purchased from first class steel plant |
| Finish | Smooth |
| Painting Color | Black or yellow |
| Process | Forging |
| Surface Hardness | HRC52-58, Depth:8mm-12mm |
| Quality Guarantee | One Year |
| Certification | ISO9001-9002 |
| Delivery Time | Within 10--20 days after sales contract establishment |
| Package | Fumigate seaworthy packing and Export Standard Package |
| Payment Term | TT, L/C, Paypal, Western union,D/P |
| Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
| Our excavator and dozer track chain assy advantage(Why Choose our undercarriage parts) |
| 1.Quench-tempering processes to guarantee genuine mechanical properties |
| 2. High hardness :HRC52-58,deepth:8mm-12mm |
| 3. Deep hardened wear surface |
| 4. High strength and superior wear resistence to bending and breakage |
| 5.Strict Quality Control |
| 6.Precise design and carefully manufactured |
| 7.Certificated by ISO9001:2008 |
| 8.Produce as per client's samples,designs and drawings |
| Excavator and bulldozer undercarriage parts Track chain Functions: |
| 1.Guide the track in and out of the track rollers. |
| 2.Intermittently support the machine's weight |
| 3.Provide a way to control slack and tension |
Caterpillar excavator and dozer undercarriage parts track link Part number and Berco number list
| Chain/Track Link | |||||
| Caterpillar Bulldozers | |||||
| MODEL | DESCRIPTION | PITCH | KUT No. | BERCO No. | OEM No. |
| D2 | LINK(35L) 1/2 | 155.57 | KU039-N2-35 | LH1A/35 | |
| LINK(35L) 9/16 | 155.57 | KU039-N0-35 | AK13 | ||
| D3B | LINK(39L) | 155.57 | KU040-P0-39 | CR3657 | |
| D3C | LINK(36L, SPLIT) | 155.57 | KU040-S0-36 | CR4749 | |
| LINK(36L, LUB) | 155.57 | KU040-L0-36 | CR4746 | ||
| D3G | 155.57 | KU040-L2-00 | CR6616 | ||
| D4D | LINK(38L, STD)5/8 | 171.45 | KU041-P0-38 | CR2849/CR4858 | |
| LINK(36L, STD)9/16 | 171.45 | KU041-P1-00 | CR2567B | ||
| D4E | LINK(36L, SPLIT) | 171.45 | KU041-S0-35 | CR3628 | |
| LINK(38L, LUB) | 171.45 | KU041-L0-38 | CR3519 | ||
| D4H | LINK(39L, LUB) | 171.5 | KU046-L0-39 | CR5192 | |
| D5 | LINK(39L, STD) | 175.4 | KU042-P0-39 | CR2823 | |
| LINK(39L, SPLIT) | 175.4 | LU042-S0-39 | CR3627 | ||
| LINK(39L, LUB) | 175.4 | KU042-L0-39 | CR3520 | ||
| D5H | LINK(37L, LUB) | 190 | KU047-L0-37 | CR4805 | |
| D6B | LINK(40L, STD) | 171.5 | KU063-W0-40 | CR1998 | |
| D6H | LINK(39L, LUB) | 202.8 | KU048-L0-39 | CR4810 | |
| D6C/D | LINK(36L, STD) | 203.2 | KU043-W0-36 | CR3176/CR6010 | |
| LINK(36L, SPLIT) | 203.2 | KU043-S0-36 | CR3307 | ||
| LINK(36L, LUB) | 203.2 | KU043-L0-36 | CR3309 | ||
| D6H | 203.2 | KU048-L0-00 | CR6587 | ||
| D7 | LINK41L) | 203.2 | KU079-W1-41 | CR1769/CR5060 | |
| D7H | LINK(40L, LUB) | 215.9 | KU049-L0-40 | CR5069 | |
| D7G | LINK(49L, STD) | 215.9 | KU044-W1-49 | CR4235 | |
| LINK(38L, STD) | 215.9 | KU044-W0-38 | CR2576 | ||
| LINK(38L, SPLIT) | 215.9 | KU044-S0-38 | CR3308 | ||
| LINK(38L, LUB) | 215.9 | KU044-L0-38 | CR3116 | ||
| D8H,K | LINK(41L, STD) | 229 | KU045-W0-41 | CR2877 | |
| LINK(41L, SPLIT) | 229 | KU045-S0-41 | CR2701 | ||
| LINK(41L, LUB) | 229 | KU045-L0-41 | CR3149 | ||
| D8N(D8R) | LINK(44L, LUB) | 215.9 | KU034-L0-44 | CR4525 | |
| D9G,D9H | LINK(39L, STD) | 260.4 | KU035-W0-39 | CR2154 | |
| LINK(39L, SPLIT) | 260.4 | KU035-S0-39 | CR2672 | ||
| LINK(39L, LUB) | 260.4 | KU035-L0-39 | CR3153 | ||
| D9L | 228.6 | KU137-L0-00 | CR6446 | ||
| D9N | LINK(43L, LUB) | 240 | KU036-L0-43 | CR4653 | |
| D10N | LINK(44L, LUB) NON PPR | 260 | KU037-L0-44 | ||
| LINK(44L, LUB)PPR | KU037-L1-44 | CR5038 | |||
| D4E-EWL/943 | LINK(38L, LUB) | 171.07 | KU041-E0-38 | CR4261 | |
| D5B-EWL/953 | LINK(40L, LUB) | 175.4 | KU042-E0-40 | CR4264 | |
| D6D-EWL/963 | LINK(36L, LUB) | 203.2 | KU043-E0-36 | CR4267 | |
| D7G-EWL/973 | LINK(40L, LUB) 3/4 | 215.9 | KU044-E0-40 | CR4268 | |
| LINK(40L, LUB) 7/8 | 215.9 | KU044-E1-40 | CR4700 | ||
| D4H-HD,D5M | LINK(44L, LUB) | 171.5 | KU046-D0-44 | CR5552 | |
| D5H-HD,D6M | LINK(46L, LUB) | 190 | KU047-D0-46 | CR5465 | |
| D6H-HD, D6R | LINK(45L, LUB) | 203.2 | KU048-D0-45 | CR5534 | |
| D7R | LINK(40L, LUB) | 215.9 | KU049-D0-40 | CR5574 | |
| Caterpillar Excavators | |||||
| MODEL | DESCRIPTION | PITCH | KUT No. | BERCO No. | OEM No. |
| E70 | LINK(42L) | 135 | KU085-P0-42 | MT24/42 | 1028077 |
| E311 | LINK(41L) | 171.45 | KU061-P1-41 | CR4854/41 | 4I7479 |
| CAT213/215 | LINK(49L) | 171.45 | KU041-P0-49 | CR2849/49 | |
| E110 | LINK(43L) | 171.45 | KU121-P0-43 | CR1766/43 | |
| CAT225 | LINK(43L) | 171.1 | KU122-N0-43 | CR4858 | |
| CAT225B | LINK(46L) | 175.5 | KU042-P0-46 | CR5035 | 5A5293 |
| CAT225D | LINK(49L) 19.3mm | 190 | KU030-P2-49 | CR5011 | 6Y8184 |
| CAT320 | LINK(45L) | 190 | KU030-P0-45 | CR5350/45 | 9W9354 |
| CAT325 | LINK(45L) | 203 | KU031-P0-45 | CR5489/CR6296 | 6Y0854 |
| CAT330 | LINK(45L) | 215.9 | KU032-P0-45 | CR5936/45 | 6Y2755 |
| CAT235 | LINK(49L) | 215.9 | KU044-W1-49 | CR4235 | 8E4274 |
| CAT345B | 215.9 | KU038-P1-00 | CR6594 | ||
| CAT245 | 228.6 | KU045-W1-00 | CR3127 | ||
| CAT245B | 260.4 | KU127-W0-00 | CR4200 | ||
| CAT350 | 228.6 | KU123-W0-00 | CR6396 | ||
| CAT375-undev | 260 | KU128-W0-00 | CR6363 | ||
| CAT385-undev | 260 | KU129-W0-00 | |||
