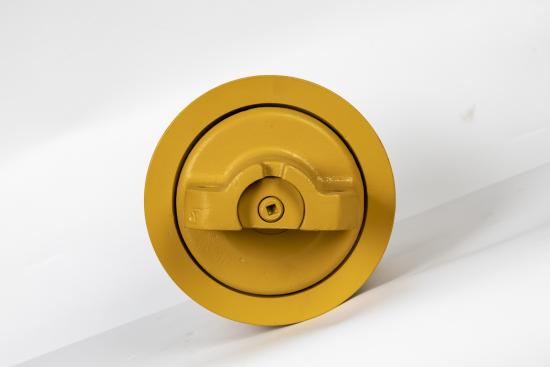

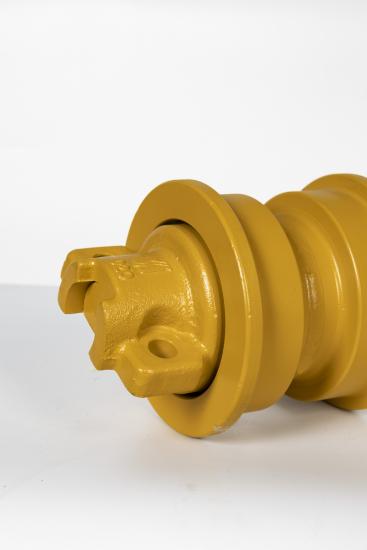

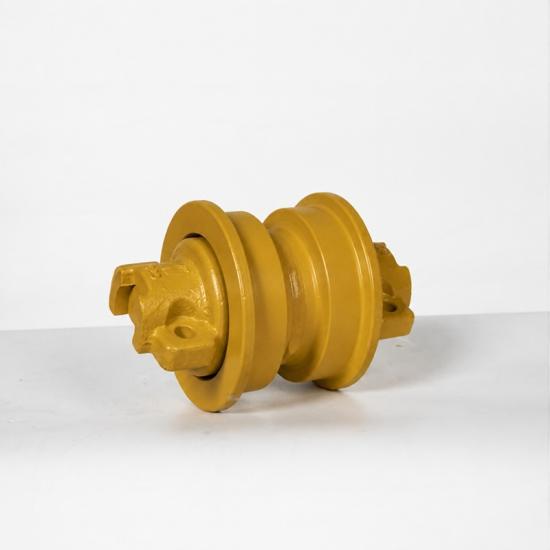

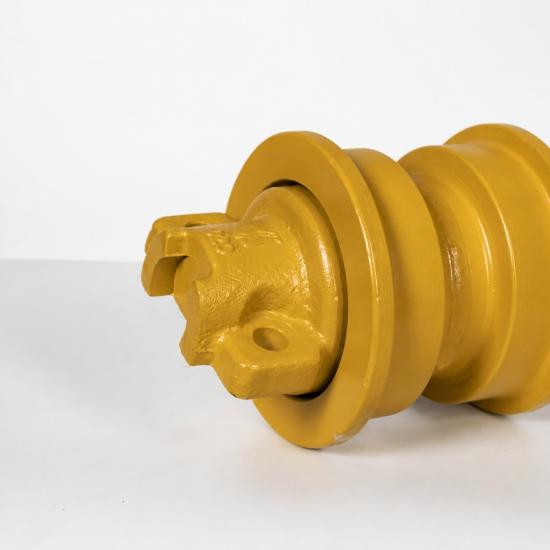

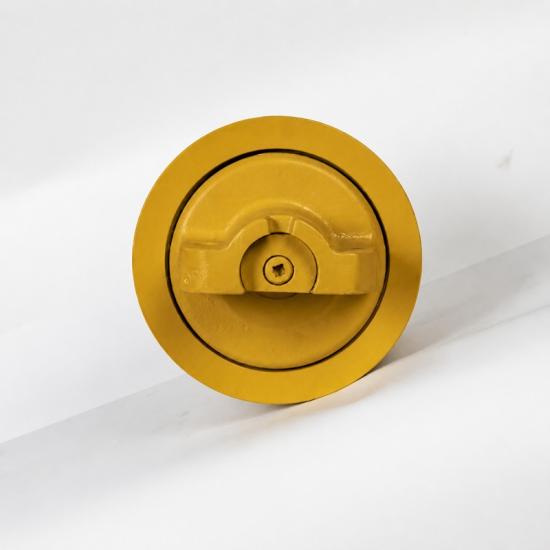

Caterpillar D7G D7R D7H Double Flange Track Roller | Heavy-Duty Bottom Roller Dozer Undercarriage Parts

Heavy-duty double flange track roller compatible with CAT D7G bulldozer. Dual-side anti-derailment flanges, forged wear-resistant body, perfect for mining & rough terrain.

brand:
Caterpillar
color:
Black or Yellow
Model:
D7G D7R D7H
Warranty:
12 months
Process:
Forging
Hardness Depth:
8-12mm
Surface Hardness:
HRC52-58
Material:
50MnB
Moving Type:
Crawler Bulldozer

inquiry now

products details

Product Description

Bulldozer lower bottom roller for CAT D7G D7H D7R tractor machine spare parts.Caterpillar D7G Double Flange Track Roller (D7G double side bottom roller) is heavy-duty undercarriage component engineered for CAT D7G dozer, equipped with two integrated guiding flanges on both roller ends to lock track chain firmly and prevent track derailment during sharp turns or uneven rough ground.

Application

Double flange track rollers are installed at front & rear ends of D7G track frame, essential for harsh working environments including stone mines, mountain excavation, mud and gravel construction sites. Cooperates with single flange rollers to balance track stability and rolling resistance for full machine undercarriage protection.

Features

Premium 50Mn/35MnB forged steel body with deep quenching, surface hardness HRC52–58, wear resistance boosted for long service life.

Reliable Duo-Cone oil seal + lifelong internal lubrication, blocks mud, sand and dust infiltration to avoid oil leakage and bearing damage.

Exact OEM dimension matching, plug-and-play installation without modification, fits all original D7G track frame assemblies.

Compact single-flange structure reduces extra friction, lowers overall undercarriage operation cost for general earthmoving projects.

Reinforced forged steel roller body, thicker flange wall, stronger impact resistance for high-load mining, quarry and hill construction working conditions.

Standard Duo-Cone sealing system with permanent grease lubrication, minimal maintenance intervals, stable continuous operation 2000+ working hours.

1:1 OEM size replication, seamless fit for CAT D7G original track undercarriage, compatible with full D7G track link groups.

Dual-flange limiting design disperses lateral side force, reduces abnormal abrasion of track links, idlers and sprockets, cutting long-term parts replacement expenses.

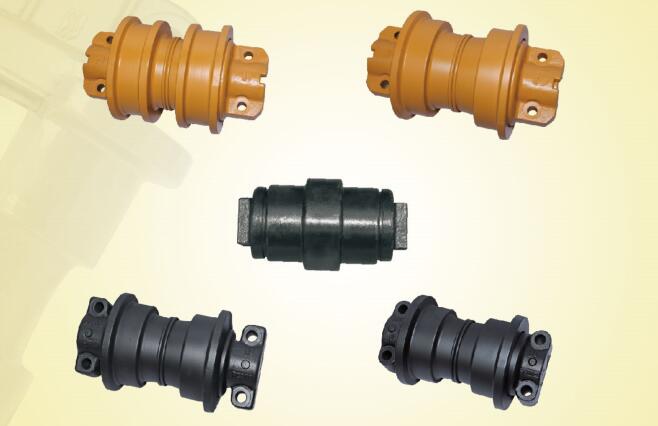

Construction Machinery Spare Parts Track Roller

Product Parameters

Name	Track roller/Lower roller/Bottom roller for bulldozer equipment
Moving Type	Crawler excavator and bulldozer and loader
Type	Bulldozer undercarriage parts
Process	forging
Hardness Depth	8-12mm
Surface Hardness	HRC52-58
Material	50MnB
Minimum Order Quantity	5 Piece/Pieces
Port	Xiamen Port
Warranty	12 months
Supply Ability	100000 Piece/Pieces per Month
Packaging Details	Standard export fumigated wooden pallet
Delivery Detail	Within 30 days after contract established
Payment Terms	L/C,T/T,Western Union,MoneyGram

Why Choose us?

Good lubricated oil recycle system

Deep hardened wear surface

High hardness: HRC52-58, depth: 8mm-12mm

Good bronze bushings

Strict Quality Control

OEM mounting dimension

Certificated by ISO9001:2008

Produce as per client's samples, designs and drawings

Caterpillar Undercarriage Track Roller List

Rollers (CR = Carrier Roller, SF = Single Flange Track Roller, DF = Double Flange Track Roller)

Application	OEM Part No	Pos	Alternative Nos.	Berco Ref	ITM Ref	Notes
Caterpillar Bulldozers & Tractors
D3, D3B, 931	6S3607	SF	3T4352	CR3000	A01030A0M00
	6S3608	DF	3T4353	CR3001	B01030A0M00
	6S3609	CR		CR3002	C0103100N00
D4D, D4E, 933	9P7783	SF	1181608, 7K8095, 6T9887	CR1328	A0104000M00
	9P7787	DF	1181609, 7K8096, 6T9883	CR1329	B0104000M00
	6K9879	CR	6K9880	CR2880	C0104100M00
D5M, D4H, 943	1248237	SF	7G4836	CR6150	A01040L0M00	With Collars
	1248240	DF	7G4837	CR6151	B01040L0M00	With Collars
	6K9879	CR	6K9880	CR2880	C0104100M00
D6M, D5B,D5H, 955H/K & 953	1210824	SF	9P1368, 6T9879, 9S9539	CR6152	A01050L1M00	With Collars
	1210827	DF	9P1363, 6T9875, 9S9538	CR6153	B01050L1M00	With Collars
	9S3570	CR	5A8374	CR2881	C0105100M00	For D5B, 953
	6Y3908	CR		CR4799	C01051H0M00	For 5H, D6M
D6H, D6R, 963	1205746	SF	7T4102, 1254175	CR6088	A01060L0M00	With Collars
	1205766	DF	7T4107, 1254176	CR6089	B01060L0M00	With Collars
	6Y1781	CR		CR4800	C01061H0M00
D6D	7G0421	SF	1181617, 9G8029	CR3634	A01060D0M00	¾” Coll Bolts
	7G0423	DF	1181618, 9G8034	CR3635	B01060D0M00	¾” Coll Bolts
	9S2730	CR	3T3206	CR2650	C0106100M00
D6C, 955K/L	9S9403	DF	1181614, 6Y2901, 9G8099	CR1793	A0106000M00	5/8” Coll Bolts
	9S9404	DF	1181615, 6Y2903, 9G8098	CR1792	B0106000M00	5/8” Coll Bolts
	9S2730	CR	3T3206	CR2650	C0106100M00
D7H, D7R	1248250	SF	9W5586, 6T9871	-	-	With Collars
	1248253	DF	9W5585, 6T9867	-	-	With Collars
	9M0638	CR	1P8717	CR2876	C0107100M00
D7F, D7G, 977L	9S0316	SF	1181623, 4S9051	CR2617	A01070A0M00	7/8” Coll. Bolts
	9S0317	DF	1181625, 8S2933	CR2615	B01070A0M00	7/8” Coll. Bolts
	9M0638	CR	1P8717	CR2876	C0107100M00
D7E	9S7284	SF	1P9100, 9S7388	CR1652/1	A107001M00	¾” Bolts
	9S7286	DF	1P9102, 9S7387	CR1652/2	B107001M00	¾” Bolts
	9M0638	CR	1P8717	CR2876	C0107100M00
D8N	1969947	SF	9W8705, 1327928, 7T9188	CR4528	A01089L1M00
D8N	1969946	DF	9W8706, 1327929, 7T9193	CR4529	B01089L1M00
D8L	9W7826	SF	7G7594	CR4504	A01089L1M00
D8L	9W7827	DF	7G7559	CR4056	B01089L1M00
D8K	7S9041	SF	6P4897	CR2798	A0108000M00	1” Coll. Bolts
	7S9042	DF	6P4898	CR2782	B0108000M00	1” Coll. Bolts
	9P2663	CR	8M0380, 7M5202, 8P6256	CR3512	C0108100M00
D9N	7T1258	SF	1043495, 1969955	CR4672	A01099N1M00
D9N	7T1253	DF	1043496, 1969954	CR4673	B01099N1M00
D9L	6Y2950	SF	7T1831, 9G8641	CR4234	A01099LAM00
D9L	6Y2951	DF	9G8642	CR3756	B01099LAM00
D9H	8P5605	SF	7S7672	CR4291	A01090C0M00
	8P5604	DF	7S7673	CR4292	B01090C0M00
	7M5288	CR	3P3403	CR3518	C01091E0M00
D10N	7T0682	SF	6Y0889, 1253268	CR5041	A01109NCM00
D10N	7T0687	DF	6Y0890, 1253270	CR5043	B01109NCM00
Caterpillar Excavators
CAT320B/C/D/E	1175045	SF	8E5034, 1634143	CR5572	A7820000M00	Also E200
CAT320B/C/D/E	8E5600	CR		CR5592	C7820100M00	Also E200
322	1634145	SF	6I9396	CR5726	A0122000M00
325	1175046	SF	6Y1057, 1634147	CR5525	A01250C0M00
325	6Y5323	CR	6Y8080, 6Y8227	CR5595	C0125100M00
330	1175047	SF	6Y2795, 1634149, 1503987	CR5897	A0130000M00
330	6Y5323	CR	6Y8080, 6Y8227	CR5595	C0125100M00
340, 345	1787293	SF	1524128, 1486522	CR6590	-
340, 345	1247280	CR		CR6596	-
350	1890475	SF	1524129	CR6401
350	8E4623	CR		CR6400
307, 307B	1273806	SF		-	-
307, 307B	1028076	CR
312, 311	1519747	SF	4I7346, 861934	CR5108	-
312, 311	4I7345	CR	990178, 990179
215, 225	7T6394	SF	8E5745	PC395	A3208000M00
219, 225	8E4573	SF	9W6789	CJ5110	A0125000M00
205 (B4)	8E7494	SF	7T6395, 5W4144	PC377	A1404000M00

Production Show

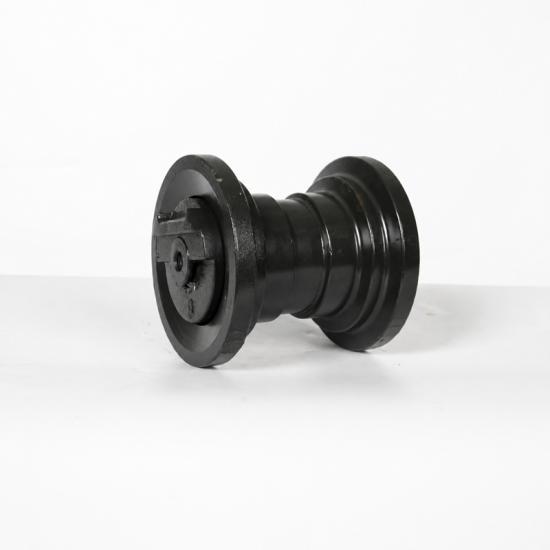

Excavator Lower Roller With Cast Iron Bushing

Excavator and bulldozer roller material inspection

FAQ

What Xiamen Fortune Industrial Co.,Limited supply?

We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.

How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions.

How about the construction machinery excavator and dozer undercarriage parts Quality Control?

We have an excellent QC system, will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.

What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
