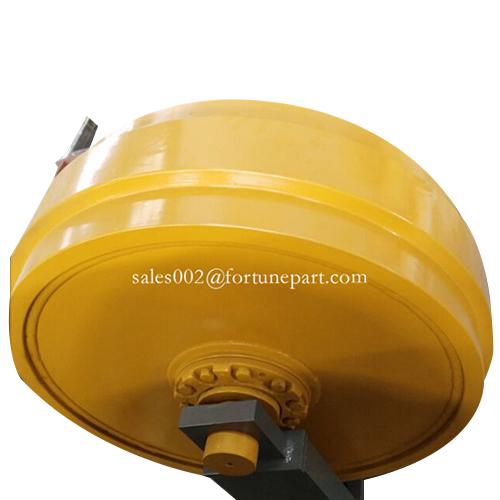

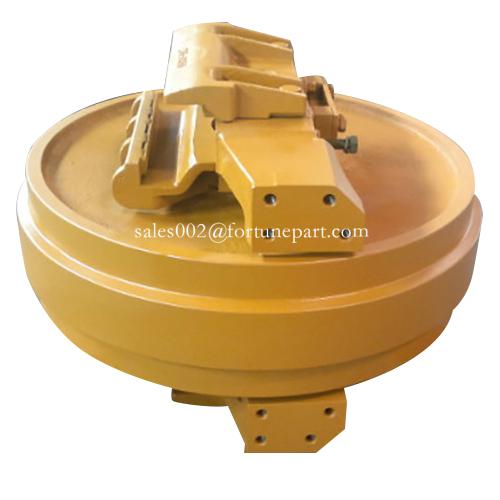

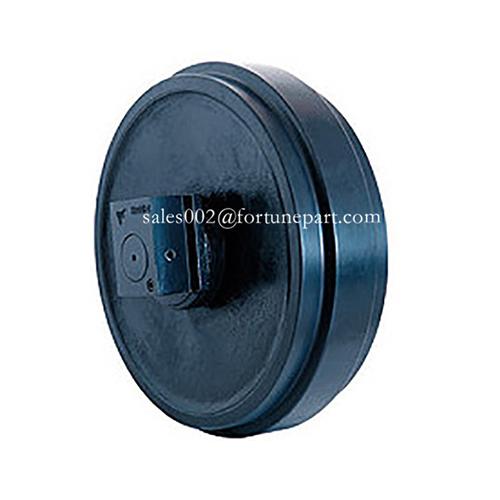

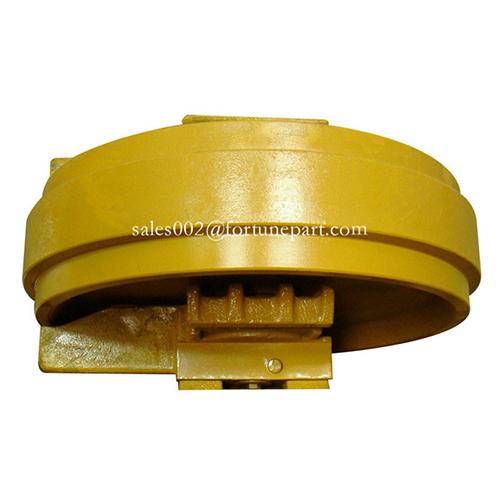

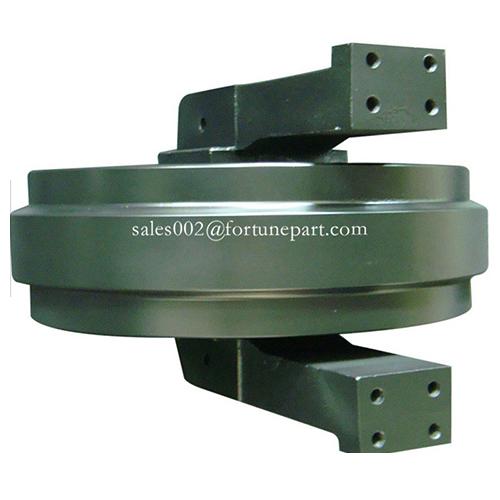

Excavator track idler wheel for Hitachi EX110 ZX330-5G EX1100 tractor undercarriage repair
The guide wheel is used to guide the track to rotate correctly to prevent its deviation and derailment.
Most excavators also act as supporting wheel,this can increase the contact area between the track and the ground,and reduce the grounding voltage.
FT excavator recoil spring idler wheel adopt the unique heat treatment method on wheel body, ensure the surface hardness and hardness layer.
The guide wheel bracket has strong wear resistance and durable.
Perfect sealing, precision machined surface, around type seal design, guarantee products from lifetime lubrication.
| Xiamen Fortune Industrial Co., Limited | |
| Product Name | Hitachi excavator undercarriage spare parts guide wheel |
| Production Standard | OEM |
| Material | 40SiMnTi |
| Finish | Smooth |
| Painting Color | Black or yellow |
| Process | Forging & casting |
| Surface Hardness | HRC52-58, Depth:8mm-12mm |
| Quality Guarantee | One Year |
| Certification | ISO9001-9002 |
| Delivery Time | Within 10--20 days after advance payment receive |
| Package | Fumigate seaworthy packing and Export Standard Package |
| Payment Term | TT, L/C, Paypal, Western union,D/P |
| Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |

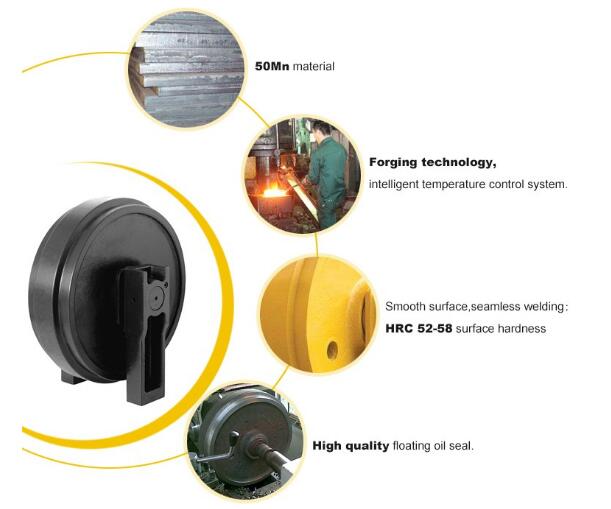

| Our excavator and dozer track idler wheel advantage(Why Choose our undercarriage parts) |
| 1.Quench-tempering processes to guarantee genuine mechanical properties |
| 2. High hardness :HRC52-58,deepth:8mm-12mm |
| 3. Deep hardened wear surface |
| 4. High strength and superior wear resistence to bending and breakage |
| 5.Strict Quality Control |
| 6.Precise design and carefully manufactured |
| 7.Certificated by ISO9001:2008 |
| 8.Produce as per client's samples,designs and drawings |

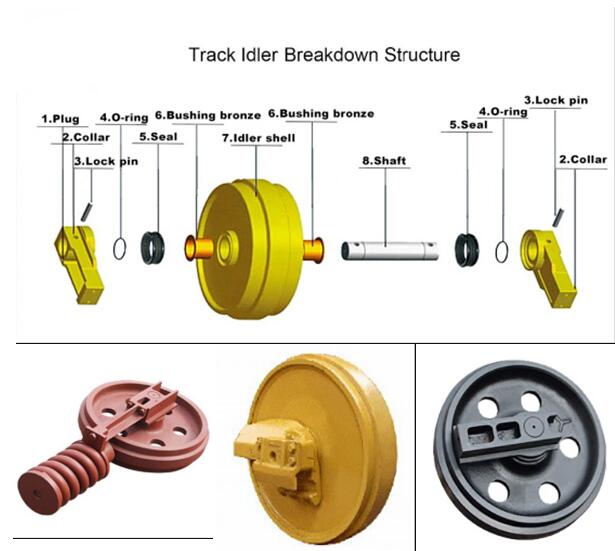

Hitachi ZX200 ZX330-5G excavator track spring idler wheel structure
| Excavator and bulldozer undercarriage parts Track Idler Functions |
| 1.Guide the track in and out of the track rollers. |
| 2.Intermittently support the machine's weight |
| 3.Provide a way to control slack and tension |
FT hot selling excavator and dozer undercarriage parts
FT excavator and dozer undercarriage parts production process
Heavy equipment undercarriage parts package
Crawler Hitachi excavator undercarriage track idler part number and Berco number list
| Idler | |||||
| Part No. | Ref No. | Part No. | Model | Description | (kg) |
| SJI0110 | 9101919 | EX30 | Idler Group | 52 | |
| SJI0100 | 9068477 | EX60-1 | Idler Group | 60 | |
| SJI0200 | 9097575 | EX60-3 | Idler Group | 57 | |
| SJI0300 | 9068144 | EX100,EX120-1,-2 | Idler Group | 85 | |
| SJI0400 | 9092973 | AT180421 | EX100-2,EX120-2,JD490E | Idler Group | 85 |
| SJI0500 | 9069635 | EX150, 490D, 590D | Idler Group | 105 | |
| SJI0600 | 9071453 | EX100M | Idler Group | 135 | |
| SJI0700 | 9147610 | EX100M-5 | Idler Group | 135 | |
| SJI0800 | 9066393 | 9143400 | EX200, EX200-1 | Idler Group | 130 |
| SJI1000 | 9145269 | SI0738 | EX200-2,3,5 | Idler Group | 125 |
| SJI1100 | 9115208 | SI0824 | EX270, EX300-1, EX320 | Idler Group | 154 |
| SJI1200 | 9154690 | 9933956 | EX300-5 | Idler Group | 185 |
| SJI1300 | 9074011 | 9134295, 9134152 | EX400LC, EX400-2,3, 992D | Idler Group | 230 |
| SJI1310 | 9137270 | EX550 | Idler Group | 277.27 | |
| SJI1320 | 9134272 | EX700,750-5 | Idler Group | 360.45 | |
| SJI1330 | 9101204 | EX1100 | Idler Group | 641.36 | |
Hitachi excavator undercarriage bottom track roller part number list
Rollers(CR=carrier
roller, SF=Single Flange track roller, DF=Double Flange track roller)
Application
Usco Part
No
POS
Alternative
Nos.
Berco Ref
ITM Ref
Notes
Hitachi
EX60-1
9066207
SF
EX60-2,3
9096970
SF
A7606000M00
EX60-1/2/3
9108841
CR
C7606000M00
EX60-5
9177016
SF
A76060A0M00
EX60-5
9153288
CR
C76061A0M00
EX100, EX120
9066508
SF
9114315
HT49
A1813000M00
EX100M, EX150
9066691
SF
A7615000M00
EX200-2/3
9089173
SF
9132602, 9114681
HT50
A7620000M00
9089636
CR
AT152079
ID861
C15690E0M00
EX215
9134243
SF
FT3612
A76200A0M00
EX220
9066509
SF
HT47
A7622000M00
EX300-1
9114682
SF
9105750
CR
EX300-2,5
(B6)
9066690
SF
91,146,199,114,682
LH696
A14060A0M00
Also
for 235/B
9096966
CR
9149839, 9062405
FT278
C4030000M00
EX400-5 (B7)
9115234
SF
9115234
LH90
A140700AM00
9115233
CR
9072634, 71401039
FT2990
C7140000M00
Fiat-Hitachi
FH120/130/150
4509639
SF
SJ68
A21900A0M00
FH120
9105749
CR
FT2744
C7615000M00
FH200 (B5)
45013640
SF
14260870
KL18
A1405000M00
