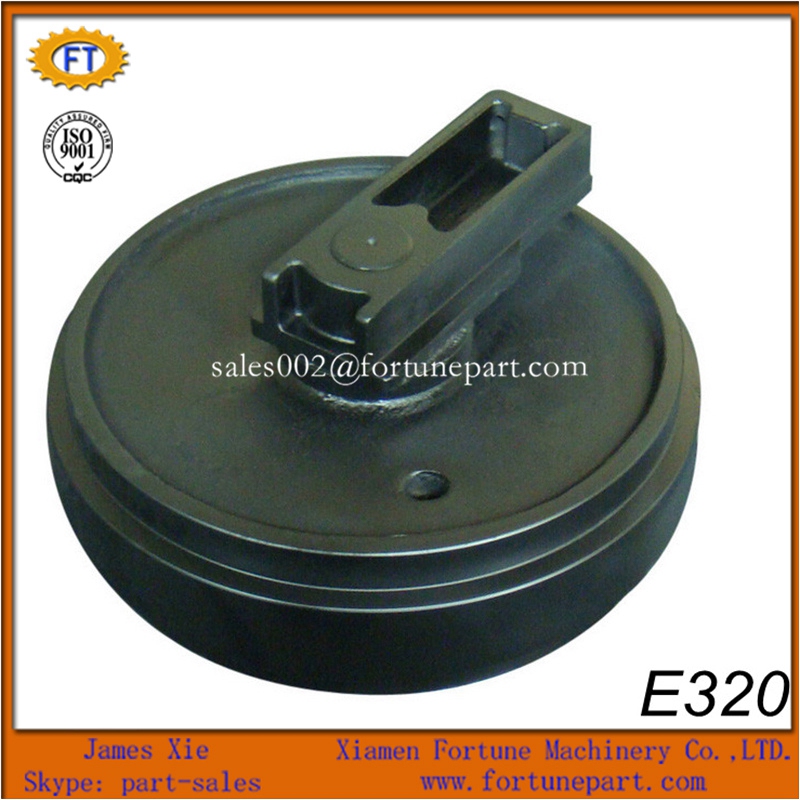

Caterpillar crawler excavator E320D E336DL E345D undercarriage parts front idler for earthmoving and mining
E345D excavator idler part number 115-6366,alternative number is 2487151,Berco number CR6597
FT idler groups are manufactured using quality casting steel for a superior wear resistance.
FT front and rear idler provide superior structural support and resurfacing capabilities.
A special heat treatment ensures the proper hardness level,which offers a long wear resistance.
The seal groups ensure a lifetime lubrication which eliminated idler maintenance and reduce operating costs.
| Xiamen Fortune Industrial Co., Limited | |
| Product Name | Caterpillar excavator and dozer undercarriage spare parts track idler group |
| Production Standard | OEM |
| Material | 40SiMnTi |
| Finish | Smooth |
| Painting Color | Black or yellow |
| Process | Forging & casting |
| Surface Hardness | HRC52-58, Depth:8mm-12mm |
| Quality Guarantee | One Year |
| Certification | ISO9001-9002 |
| Delivery Time | Within 10--20 days after advance payment receive |
| Package | Fumigate seaworthy packing and Export Standard Package |
| Payment Term | TT, L/C, Paypal, Western union,D/P |
| Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
| Our excavator and dozer track idler wheel advantage(Why Choose our undercarriage parts) |
| 1.Quench-tempering processes to guarantee genuine mechanical properties |
| 2. High hardness :HRC52-58,deepth:8mm-12mm |
| 3. Deep hardened wear surface |
| 4. High strength and superior wear resistence to bending and breakage |
| 5.Strict Quality Control |
| 6.Precise design and carefully manufactured |
| 7.Certificated by ISO9001:2008 |
| 8.Produce as per client's samples,designs and drawings |

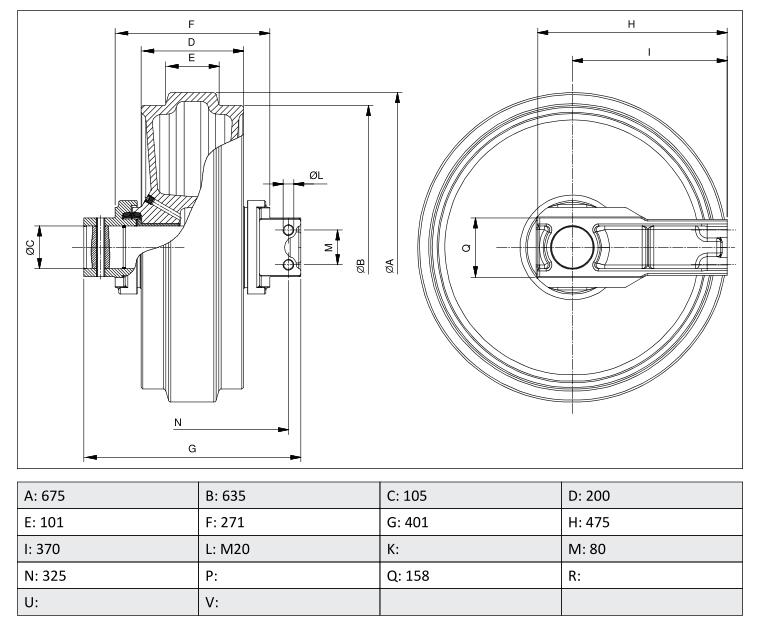

Caterpillar E345D front idler group technical drawing
Our Excavator undercarriage parts main production certificate
Excavator and dozer front idler assembly quality inspection equipment

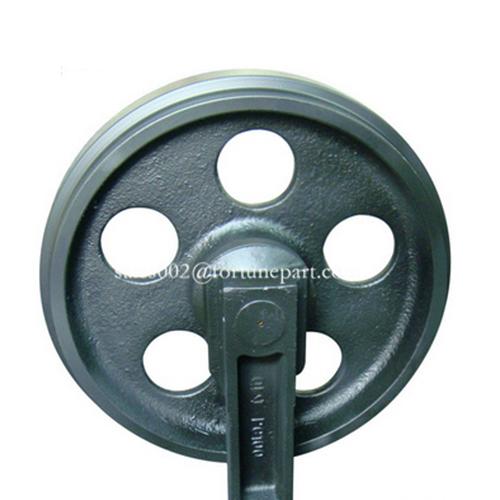

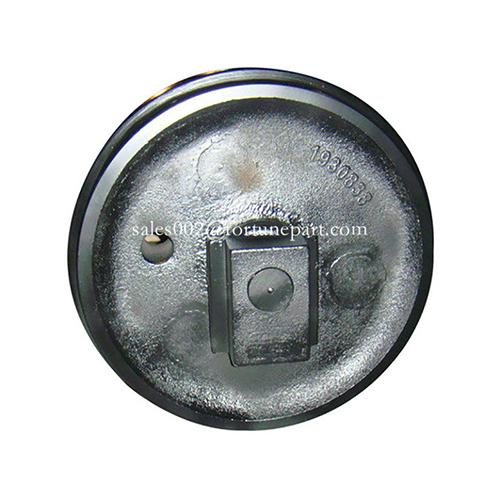

Hot selling excavator and dozer undercarriage parts
Crawler Caterpillar excavator and bulldozer undercarriage front and rear idler part number and Berco number list
| Idler | |||||
| Part No. | Ref No. | Part No. | Model | Description | (kg) |
| SJI2900 | 4I7337 | E110B,E120B,311,312 | Idler Group | 90 | |
| SJI3000 | CR5732 | 7Y1601,1132907 | E200B,EL200B,315,318,320 | Idler Group | 135 |
| SJI3200 | 094-1384 | E240,E240B, -C | Idler Group | 120 | |
| SJI3150 | 4C2084 | CR5127 | 225- 6.91"7.50"PITCH | Idler Group | 160 |
| SJI3420 | 4E8500 | CR5132 | 235 | Idler Group | 270 |
| SJI3100 | CR5786 | 115-6337 | 322B | Idler Group | 132 |
| SJI3300 | CR5884 | 1028155 | 325 | Idler Group | 170 |
| SJI3400 | CR6087 | 1028152, 7Y0762 | 330 | Idler Group | 240 |
| SJI3450 | CR6597 | 1156366 | 345 | Idler Group | 255 |
| SJI1311 | CR6403 | 1358903 | 350 | Idler Group | 270 |
| SJI3650 | 136-2429 | 365 | Idler Group | 525 | |
| SJI3750 | 194-1157 | 135-8904 | 375,385 | Idler Group | 590 |
| SJI3500 | 960253 | E300B | Idler Group | 198 | |
| SJI5900 | 8J6562 | 2T0048,2154459 | 615/623 Bottom Idler | Idler Group | 77 |
| SJI5901 | 3G1086 | 2154458,2T0047 | 615/623 Center Idler | Idler Group | 40 |
| SJR1001 | 2T0046 | 3G7490 | 615/623 Upper roller | Roller Group | 18 |
| SJI5903 | 1447321, 8W4731 | 3G0897, 3J4778 | 631-657 Floor roller | Roller Group | 21 |
| SJI5902 | 9J1035 | 633C,D BOTTOM IDLER | Idler Group | 80 | |
| SJI8400 | CR3004 | 9N4173 | D3B,C,G/D4B,C,G | Idler Group | 110 |
| SJI8900 | CR5420 | D5C-D5G | Idler Group | 175 | |
| SJI8700 | CR3189WB | 7P9017 | 953 | Idler Group | 180 |
| SJI8701 | CR3189 | 7T3501 WS3 | D5B W/O BRACKETS | Idler Group less bracket | 135 |
| SJI8800 | CR4007WB | 7P2719 | 963 | Idler Group | 195 |
| SJI3600 | CR4587 | 190-1534 | D4H (475mm) | Idler Group | 81 |
| SJI3700 | CR4585 | 190-1551 | D4H (500mm) | Idler Group | 90 |
| SJI3800 | CR4589 | 190-1546 | D5H,D6M | Idler Group | 112 |
| SJI7800 | CR4094 | 6L9210 | D6D with brackets | Idler Group | 170 |
| SJI7700 | 8E4007 | D5H, 517 Skidder | Idler Group | 160 | |
| SJI3900 | CR4909 | 151-4587 | D6H,D6R (545mm) | Idler Group | 147 |
| SJI4000 | CR4616 | 6T3216 | D6H,D6R (570mm) | Idler Group | 159 |
| SJI4100 | CR4911 | 135-9896, 6Y2031 | D7H, D7R (585mm) | Idler Group | 240 |
| SJI4200 | CR4593 | 192-0216 | D7H,D7R (628mm) | Idler Group | 260 |
| SJI1551 | CR4096 | 6L9212 | D8H,K W/ BRACKETS | Idler Group | 329 |
| SJI4300 | CR4531 | 111-1729 | D8N/R/T (620mm)- rear | Idler Group | 300 |
| SJI4301 | 244-1324 | D8N/R/T rear with Landfill guarding | Idler Group | 300 | |
| SJI4400 | CR4530 | 111-1730 | D8N/R/T (698mm)- front | Idler Group | 350 |
| SJI4401 | 244-1323 | D8N/R/T- front with Landfill guarding | Idler Group | 350 | |
| SJI4500 | CR4681 | 125-4655 | D9N/R/T | Idler Group | 450 |
| SJI4501 | 167-1947 | D9N/R/T with Landfill guarding | Idler Group | 450 | |
| SJI7400 | 125-3537 | 9W9734 | D10N/R/T | Idler Group | 590 |
| SJI7500-2 | 156-0313 | 9W9650 | D11N/R/T Idler Shell | Idler Shell | 930 |
FAQ
1.What Xiamen Fortune Industrial Co.,Limited supply?
We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.
2.How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions
3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
We have an excellent QC system, the QC team will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.
4.What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
Choose genuine quality excavator track idler for construction machinery parts,
Fortunepart will be your best undercarriage parts supplier in China.
