Product Description

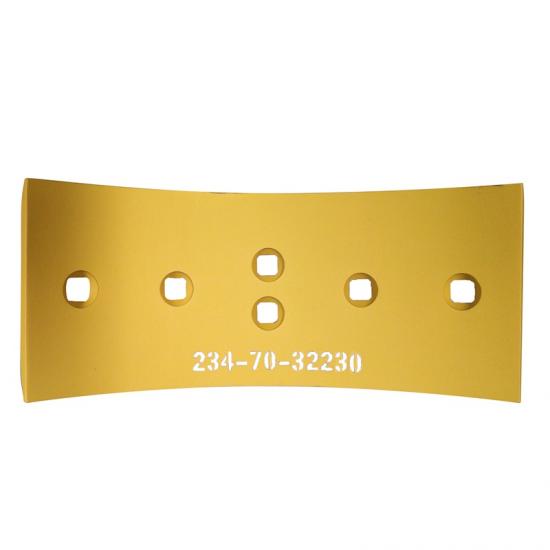

Komatsu motor grader blade and cutting edge for GD535 GD555 GD655 GD705 GD9555
Our cutting edges and grader blades are engineered to complement each other in demanding soil cutting, scraping, and leveling operations. Through professional quench-tempering processes and precision CNC machining, these wear parts achieve excellent mechanical properties, with surface hardness ranging from 320 to 520 HB (HRC44-52). Backed by 35 years of manufacturing experience and strict ISO9001-9002 quality control systems, they offer exceptional wear and impact resistance, effectively avoiding bending and breakage. Replacing worn parts with our precision-fit blades reduces machine resistance and significantly improves working efficiency in harsh environments.
Our Komatsu motor grader blade, also named grader cutting edge and moldboard wear plate, is a core wear spare part for Komatsu GD535, GD555, GD655, GD705, GD955 series motor graders. Manufactured strictly matching original OEM part numbers like 232-70-12143, 23B-70-31271, these grader blades deliver stable cutting performance for road leveling, ditch digging, slope shaping, airport ground finishing and municipal maintenance projects.
Mechanical Properties
500HB
Hardness
460-520HB
Yelding point
1440N/mm2
Breaking point
1674N/mm2
Resilience at the temperature of 25 degree
50J/cm
Resilience at tge temprerature of -20 degree
40J/cm
400HB
Hardness
380-420HB
Yelding point
1350N/mm2
Breaking point
1090N/mm2
Elongation
10%
Resilience at the temperature of 25 degree
50J/cm
300HB
Hardness
280-320HB
Yelding point
850N/mm2
Breaking point
1030Rm-N/mm2
Elongation
13%
Resilience at the temperature of -20 degree
6Jcm
Features
Application
- Heavy Equipment: Ideal for bulldozers, wheel loaders, excavators, and motor graders.
- Road Works: Road construction, gravel road shaping, maintenance, and road leveling.
- Earthmoving: Land grading, topsoil scraping, slope scraping, and general earthmoving operations.
- Harsh Environments: Heavy construction, quarrying, and demanding mining projects.
Product Parameters
|
Name |
Caterpillar Bulldozer and Grader Blades and Cutting Edge and End Bits |
|
Process |
Forging&Casting,Machining,Heat Treatment |
|
Hardness Depth |
8-12mm |
| Surface Hardness |
HRC44-52 |
| Material | 30MnB steel purchased from first class steel plant |
| Production Standard |
OEM |
| Quality Guarantee |
6 months--one year |
| Package |
Fumigate seaworthy packing and Export Standard Package |
| Delivery Time |
Within 10--20 days after sales contract establishment |
| Payment Terms | TT, L/C, Paypal, Western union,D/P |
|
Usage |
Mining &Construction &Road &Agricuture &Earth moving |
Why Choose us?
| Model | Part Number | Part Name | Specification |
|---|---|---|---|
| Bulldozer | |||
| D60/D65-12 | 140-70-11170 | Center Cutting Edge | Standard 8 holes |
| 140-70-11180 | Side Cutting Edge | Standard 6 holes | |
| 144-70-11131 | Left End Bit | Blade corner protector | |
| 144-70-11132 | Right End Bit | Blade corner protector | |
| D85/D155 | 130-70-61170 | Center Cutting Edge | Heavy duty |
| 130-70-61150 | Left End Bit | Standard thickness | |
| 130-70-61160 | Right End Bit | Standard thickness | |
| D375A-5/A-6 | 195-71-61910 | Center Cutting Edge | Mining type |
| 195-71-61930 | Left Heavy-Duty End Bit | Thickened wear resistant | |
| 195-71-61940 | Right Heavy-Duty End Bit | Thickened wear resistant | |
| D475 | 198-71-31520 | Left End Bit | Ultra heavy load |
| 198-71-31530 | Right End Bit | Ultra heavy load | |
| D6R/D6N | 9W8215 | Center Cutting Edge | Standard |
| 9W8874 | Left End Bit | Standard | |
| 9W8875 | Right End Bit | Standard | |
| D7R/D7G | 5D9553 | Main Cutting Edge | General construction |
| 7T6678 | Auxiliary Cutting Edge | General construction | |
| 7T9773 | End Bit Set | Left & right common | |
| D8R/D8N | 4T6532 | Center Cutting Edge | Large dozer blade |
| 3G8301 | Left End Bit | Thickened | |
| 3G8302 | Right End Bit | Thickened | |
| D9R/D9T | 4T6381 | Center Cutting Edge | Mining dozer |
| 4T6695 | End Bit Assembly | Mining wear resistant | |
| Wheel Loader | |||
| WA250/WA320 | 419-815-A120 | Bucket Cutting Edge | Loader main blade |
| 424-815-A130 | Bucket End Bit | Bucket corner wear part | |
| 980H/982 | 116-7460 | Bucket Main Cutting Edge | 5 ton class loader |
| Motor Grader | |||
| GD511/GD611 | 4T8940 | Curved Cutting Edge | Grader standard arc blade |
| 3G8277 | Left Grader End Bit | Blade tip protection | |
| 3G8278 | Right Grader End Bit | Blade tip protection | |
| 12G/120G/130G | 8D2786 | Standard Curved Cutting Edge | 13 holes, 1828mm |
| 140H/14M | 5D9554 | Extended Curved Cutting Edge | 15 holes, 2134mm |
| All CAT Grader | 5D9556 | Heavy Wear Resistant Cutting Edge | 19mm thick mining version |
| 5D9557 | Right End Bit | Grader blade corner | |
| 5D9559 | Left End Bit | Grader blade corner | |

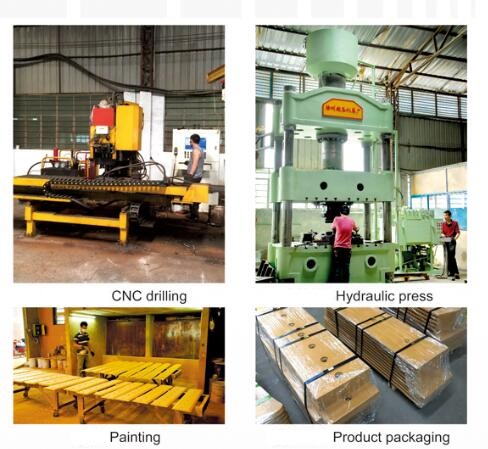

Production Show
Komatsu motor grader blade and cutting quality certificate
FAQ
What Xiamen Fortune Industrial Co.,Limited supply?
We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.
How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions.
How about the construction machinery excavator and dozer undercarriage parts Quality Control?
We have an excellent QC system, will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.
What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
