Track Roller

Caterpillar crawler tractor D6H CR6088/9 dozer undercarriage lower roller double flange

Caterpillar crawler heavy machine D6H D6R D6T 963 track roller single flange part number  7T4102, 1254175,1205746,Berco No.:CR6088,track roller double flange part number:7T4107, 1254176,1205766,Berco number CR6089, is used for construction machinery earth moving and mining
  • lead time:

    15--30 days
  • product orgin:

    China Origin
  • brand:

  • shipping port:

  • payment:

    L/C,TT,Western union, Paypal,MoneyGram
  • color:

    Black or Yellow
  • Warranty:

    One Year
  • Brand:

  • Model:

    D6D D6H D6R D6T D6M D6N 963
  • Process:

    Forging and Casting
  • Hardness Depth:

  • Surface Hardness:

  • Material:

    50Mn or 40MnB
  • Moving Type:

    Crawler excavator
  • products details

Caterpillar crawler heavy equipment tractor D6H D6R D6T 963 undercarriage parts lower track roller for earth moving and mining

Excavator Track roller has different names Excavator bottom roller and Tractor lower roller.

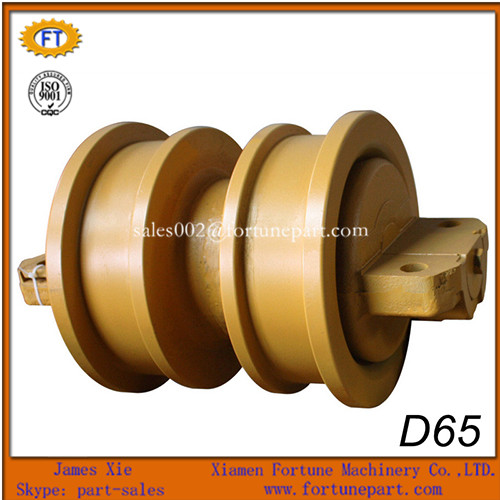

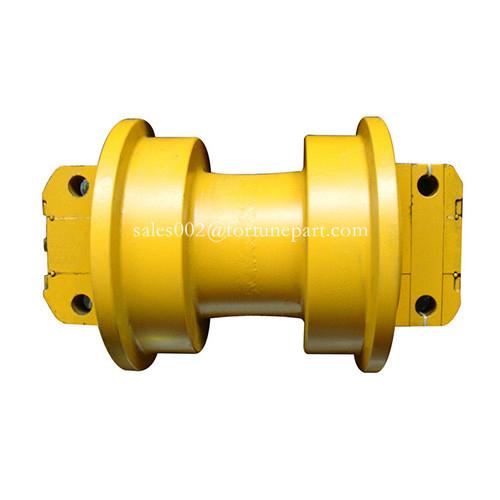

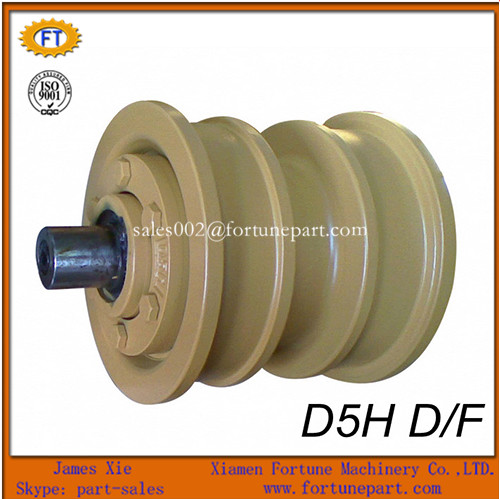

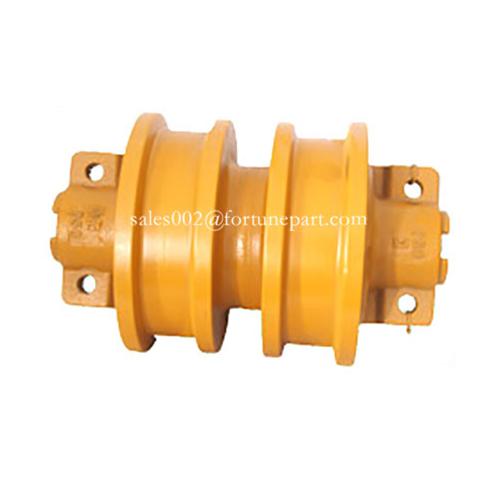

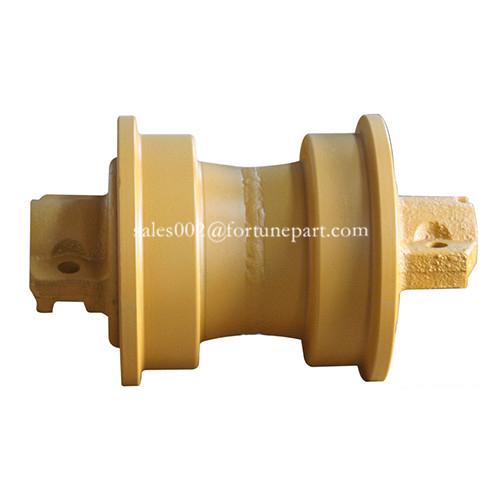

Dozer track roller has two is track roller single flange,the other type is track roller double flange,

It can be used for crawler heavy machine and crane undercarriage, such as Caterpillar,Komatsu, Hitachi,Doosan, Volvo,Kobelco,Daewoo,JCB, John Deere,Kubota,Hyundai,Sumitomo,Kato,Fiat-Hitachi,Samsung,Liebherr,Yanmar, and so on.

     Xiamen Fortune Industrial Co., Limited
Product Name Caterpillar excavator and bulldozer undercarriage spare parts track roller/lower roller/bottom roller
Production Standard ITR production standard and OEM installment size
Material 50Mn and 40MnB and 42MnB
Finish Smooth
Painting Color Black or yellow
Process Forging and casting
Surface Hardness HRC48-54, Depth:4mm-10mm
Quality Guarantee One Year
Certification ISO9001-9002
Delivery Time Within 10--20 days after advance payment receive

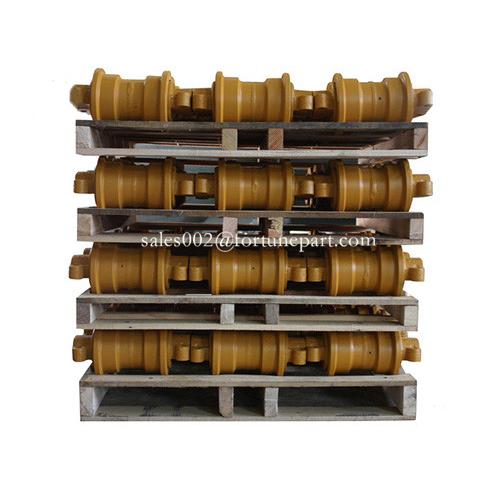

Package Fumigate seaworthy packing and Export Standard Package
Payment Term TT, L/C, Paypal, Western union,D/P
Business Scope excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc

Our undercarriage parts Track Roller advantage(Why Choose ours)
1.Good lubricated oil recycle system
2. High hardness :HRC52-58,deepth:8mm-12mm
3. Deep hardened wear surface
4. Good bronze bushings
5.Strict Quality Control
6.OEM mounting dimension
7.Certificated by ISO9001:2008
8.Produce as per client's samples,designs and drawings

Track Roller Main Features:
1.Forged from deep hardening steel and heart treated for internal strength to resist bell mounting and to increase rebuilding ability.
  two pieces roller shell rim. Heat treated shells for body strength and longer wear life.
  Heat treated for a deep uniform hardened depth that provides wear life equal to link wear life.
2.Roller shaft
  shaft and bearing designed to carry and turn with heavy track weight forged and heat treated for strength.
  Bearing surfaces are hardened and polished to reduce friction and wear
  Center flange absorbs side thrust from roller shell.
3.Cast Iron bushing
 Supports the bronze sleeve bearing.
 Cast from iron to absorb loads without permanent deformation.
 Large lubricant reservoir to reduce heat build up
4.Bronzed sleeve bearing
 Sleeve design provides a large surface area for better load distribution.
  Inner diameter surface is polished to a smooth finish.
 Soft bronze coating in the bearing absorbs any small foreign particles before they can damage the shaft and seals.

Excavator and Dozer Lower Roller Functions:
1.Support the track as its most between the sprocket and idler.
2.Guide the track between the sprocket and idler
3.Strength to resist failure before tread wear life is utilized.
4.Treads wear life matched to track links.
5.Treads and flanges rebuild able on forged shells.
6.Thru-hardened flanges to resist bending and improve rebuild ability.

Excavator and bulldozer undercarriage parts lower track roller part number and Berco number list

Application  Usco Part No  Pos  Alternative Nos.  Berco Ref  ITM Ref  Notes
Caterpillar Bulldozers
D3, D3B, 931  6S3607  SF  3T4352  CR3000  A01030A0M00
6S3608  DF  3T4353  CR3001  B01030A0M00
6S3609  CR  CR3002  C0103100N00
D4D, D4E, 933  9P7783  SF  1181608, 7K8095, 6T9887  CR1328  A0104000M00
9P7787  DF  1181609, 7K8096, 6T9883  CR1329  B0104000M00
6K9879  CR  6K9880  CR2880  C0104100M00
D5M, D4H, 943  1248237 SF  7G4836  CR6150  A01040L0M00  With Collars
1248240 DF  7G4837  CR6151  B01040L0M00  With Collars
6K9879  CR  6K9880  CR2880  C0104100M00
D6M, D5B,D5H, 955H/K & 953  1210824 SF  9P1368, 6T9879, 9S9539  CR6152  A01050L1M00  With Collars
1210827 DF  9P1363, 6T9875, 9S9538  CR6153  B01050L1M00  With Collars
9S3570  CR  5A8374  CR2881  C0105100M00  For D5B, 953
6Y3908  CR  CR4799  C01051H0M00  For 5H, D6M
D6H, D6R, 963  1205746 SF  7T4102, 1254175  CR6088  A01060L0M00  With Collars
1205766 DF  7T4107, 1254176  CR6089  B01060L0M00  With Collars
6Y1781  CR  CR4800  C01061H0M00
D6D  7G0421  SF  1181617, 9G8029  CR3634  A01060D0M00  ¾” Coll Bolts
7G0423  DF  1181618, 9G8034  CR3635  B01060D0M00  ¾” Coll Bolts
9S2730  CR  3T3206  CR2650  C0106100M00
D6C, 955K/L  9S9403  DF  1181614, 6Y2901, 9G8099  CR1793  A0106000M00  5/8” Coll Bolts
9S9404  DF  1181615, 6Y2903, 9G8098  CR1792  B0106000M00  5/8” Coll Bolts
9S2730  CR  3T3206  CR2650  C0106100M00
D7H, D7R  1248250 SF  9W5586, 6T9871  - - With Collars
1248253 DF  9W5585, 6T9867  - - With Collars
9M0638  CR  1P8717  CR2876  C0107100M00
D7F,D7G,977L  9S0316  SF  1181623, 4S9051  CR2617  A01070A0M00  7/8” Coll. Bolts
9S0317  DF  1181625, 8S2933  CR2615  B01070A0M00  7/8” Coll. Bolts
9M0638  CR  1P8717  CR2876  C0107100M00
D7E  9S7284  SF  1P9100, 9S7388  CR1652/1  A107001M00  ¾” Bolts
9S7286  DF  1P9102, 9S7387  CR1652/2  B107001M00  ¾” Bolts
9M0638  CR  1P8717  CR2876  C0107100M00
D8N  1969947 SF  9W8705, 1327928, 7T9188  CR4528  A01089L1M00
1969946 DF  9W8706, 1327929, 7T9193  CR4529  B01089L1M00
D8L  9W7826  SF  7G7594  CR4504  A01089L1M00
9W7827  DF  7G7559  CR4056  B01089L1M00
D8K  7S9041  SF  6P4897  CR2798  A0108000M00  1” Coll. Bolts
7S9042  DF  6P4898  CR2782  B0108000M00  1” Coll. Bolts
9P2663  CR  8M0380, 7M5202, 8P6256  CR3512  C0108100M00
D9N  7T1258  SF  1043495, 1969955  CR4672  A01099N1M00
7T1253  DF  1043496, 1969954  CR4673  B01099N1M00
D9L  6Y2950  SF  7T1831, 9G8641  CR4234  A01099LAM00
6Y2951  DF  9G8642  CR3756  B01099LAM00
D9H  8P5605  SF  7S7672  CR4291  A01090C0M00
8P5604  DF  7S7673  CR4292  B01090C0M00
7M5288  CR  3P3403  CR3518  C01091E0M00
D10N  7T0682  SF  6Y0889, 1253268  CR5041  A01109NCM00
7T0687  DF  6Y0890, 1253270  CR5043  B01109NCM00
Caterpillar Excavators
320 1175045 SF  8E5034, 1634143  CR5572  A7820000M00  Also E200
8E5600  CR  CR5592  C7820100M00  Also E200
322 1634145 SF  6I9396  CR5726  A0122000M00
325 1175046 SF  6Y1057, 1634147  CR5525  A01250C0M00
6Y5323  CR  6Y8080, 6Y8227  CR5595  C0125100M00
330 1175047 SF  6Y2795, 1634149,1503987  CR5897  A0130000M00
6Y5323  CR  6Y8080, 6Y8227  CR5595  C0125100M00
340, 345  1787293 SF  1524128, 1486522  CR6590  -
1247280 CR  CR6596  -
350 1890475 SF 1524129 CR6401
8E4623  CR  CR6400
307, 307B  1273806 SF  - -
1028076 CR
312, 311  1519747 SF  4I7346, 861934  CR5108  -
4I7345   CR  990178, 990179
215, 225  7T6394  SF  8E5745  PC395  A3208000M00
219, 225  8E4573  SF  9W6789  CJ5110  A0125000M00
205  (B4)  8E7494  SF  7T6395, 5W4144  PC377  A1404000M00

1.What Xiamen Fortune Industrial Co.,Limited supply?
  We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.

2.How to confirm the spare parts will fit our crawler excavator and dozer?
  Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions

3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
  We have an excellent QC system, will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.

4.What is payment term?
 TT, L/C, Paypal, Western Union, other payment term also can be negotiated.

Choose genuine quality lower track roller for construction machinery parts,

Fortunepart will be your best undercarriage parts supplier in China.
