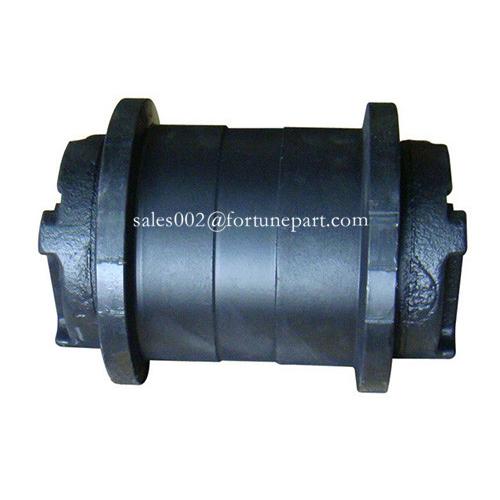

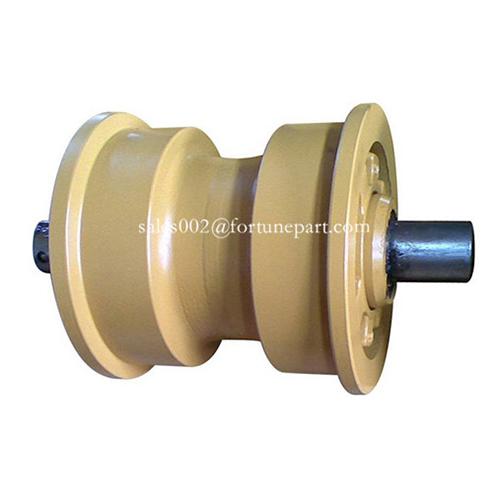

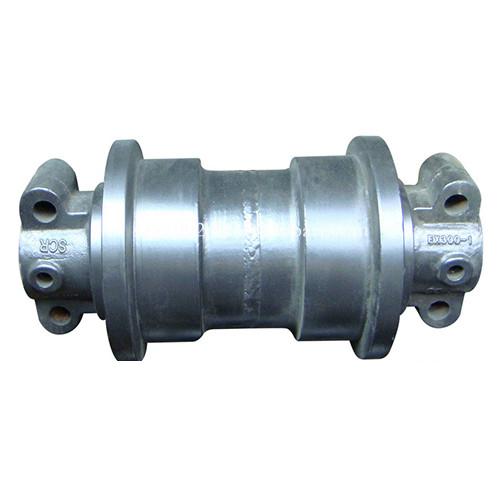

Caterpillar excavator E70B E312 undercarriage parts bottom track roller for mining equipment
E312 track roller part number is 1519747,alternative number is 861934,Berco number is CR5108
Excavator track rollers are specially designed, engineered and manufactured for high impact applications.Bulldozer track rollers are designed for applications that call for the maximum wear resistance.
FT excavator bottom rollers have well lubricated oil recycle system,deep hardened wear surface,good bronze bushings,the hardness from HRC52-58,deepth:8mm-12mm
Xiamen Fortune Industrial Co., Limited | |
Product Name | Caterpillar mining equipment undercarriage spare parts track roller/lower roller/bottom roller |
Production Standard | ITR production standard and OEM installment size |
Material | 50Mn and 40MnB and 42MnB purchased from first class steel plant |
Finish | Smooth |
Painting Color | Black or yellow |
Process | Forging |
Surface Hardness | HRC52-58, Depth:8mm-12mm |
Quality Guarantee | One Year |
Certification | ISO9001-9002 |
Delivery Time | Within 10--20 days after advance payment receive |
Package | Fumigate seaworthy packing and Export Standard Package |
Payment Term | TT, L/C, Paypal, Western union,D/P |
Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
Mining equipment undercarriage parts lower Roller advantage(Why Choose ours) |
1.Good lubricated oil recycle system |
2. High hardness :HRC52-58,deepth:8mm-12mm |
3. Deep hardened wear surface |
4. Good bronze bushings |
5.Strict Quality Control |
6.OEM mounting dimension |
7.Certificated by ISO9001:2008 |
8.Produce as per client's samples,designs and drawings |
Caterpillar excavator bottom roller inner structure

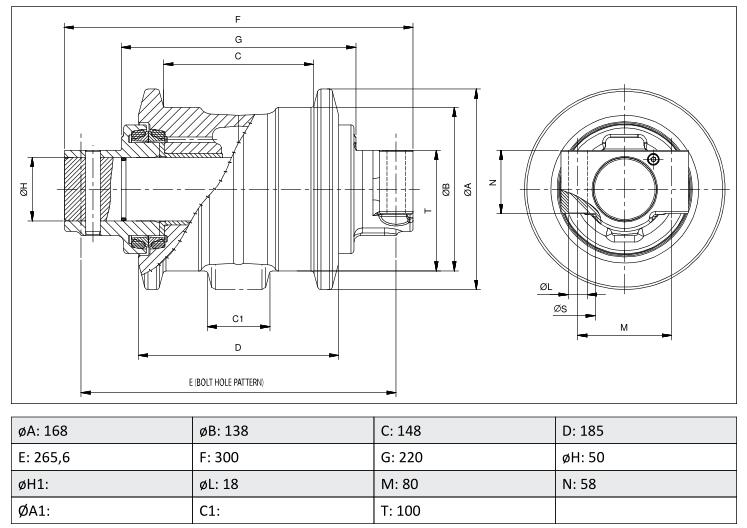

Caterpillar excavator E312 undercarriage parts bottom track roller technical drawing
Caterpillar heavy equipment spare parts bottom track roller production main certificate
Heavy equipment crawler undercarriage parts track roller inspection

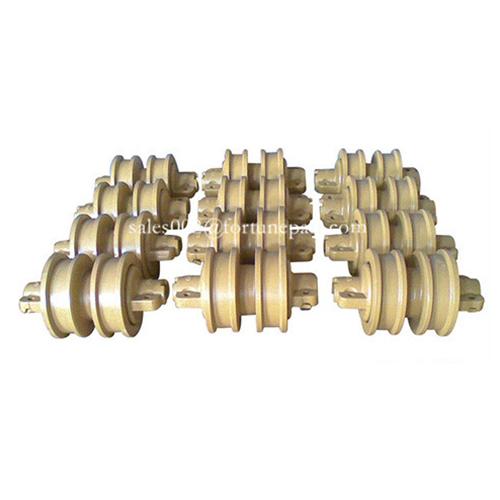

Hot selling construction equipment crawler undercarriage parts
Caterpillar Excavator and bulldozer undercarriage parts lower track roller OEM part number and Berco number list
Rollers(CR=carrier roller, SF=Single Flange track roller, DF=Double Flange track roller) | ||||||
Application | Usco Part No | Pos | Alternative Nos. | Berco Ref | ITM Ref | Notes |
Caterpillar Bulldozers | ||||||
D3, D3B, 931 | 6S3607 | SF | 3T4352 | CR3000 | A01030A0M00 | |
6S3608 | DF | 3T4353 | CR3001 | B01030A0M00 | ||
6S3609 | CR | CR3002 | C0103100N00 | |||
D4D, D4E, 933 | 9P7783 | SF | 1181608, 7K8095, 6T9887 | CR1328 | A0104000M00 | |
9P7787 | DF | 1181609, 7K8096, 6T9883 | CR1329 | B0104000M00 | ||
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D5M, D4H, 943 | 1248237 | SF | 7G4836 | CR6150 | A01040L0M00 | With Collars |
1248240 | DF | 7G4837 | CR6151 | B01040L0M00 | With Collars | |
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D6M, D5B,D5H, 955H/K & 953 | 1210824 | SF | 9P1368, 6T9879, 9S9539 | CR6152 | A01050L1M00 | With Collars |
1210827 | DF | 9P1363, 6T9875, 9S9538 | CR6153 | B01050L1M00 | With Collars | |
9S3570 | CR | 5A8374 | CR2881 | C0105100M00 | For D5B, 953 | |
6Y3908 | CR | CR4799 | C01051H0M00 | For 5H, D6M | ||
D6H, D6R, 963 | 1205746 | SF | 7T4102, 1254175 | CR6088 | A01060L0M00 | With Collars |
1205766 | DF | 7T4107, 1254176 | CR6089 | B01060L0M00 | With Collars | |
6Y1781 | CR | CR4800 | C01061H0M00 | |||
D6D | 7G0421 | SF | 1181617, 9G8029 | CR3634 | A01060D0M00 | ¾” Coll Bolts |
7G0423 | DF | 1181618, 9G8034 | CR3635 | B01060D0M00 | ¾” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D6C, 955K/L | 9S9403 | DF | 1181614, 6Y2901, 9G8099 | CR1793 | A0106000M00 | 5/8” Coll Bolts |
9S9404 | DF | 1181615, 6Y2903, 9G8098 | CR1792 | B0106000M00 | 5/8” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D7H, D7R | 1248250 | SF | 9W5586, 6T9871 | - | - | With Collars |
1248253 | DF | 9W5585, 6T9867 | - | - | With Collars | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7F,D7G,977L | 9S0316 | SF | 1181623, 4S9051 | CR2617 | A01070A0M00 | 7/8” Coll. Bolts |
9S0317 | DF | 1181625, 8S2933 | CR2615 | B01070A0M00 | 7/8” Coll. Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7E | 9S7284 | SF | 1P9100, 9S7388 | CR1652/1 | A107001M00 | ¾” Bolts |
9S7286 | DF | 1P9102, 9S7387 | CR1652/2 | B107001M00 | ¾” Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D8N | 1969947 | SF | 9W8705, 1327928, 7T9188 | CR4528 | A01089L1M00 | |
1969946 | DF | 9W8706, 1327929, 7T9193 | CR4529 | B01089L1M00 | ||
D8L | 9W7826 | SF | 7G7594 | CR4504 | A01089L1M00 | |
9W7827 | DF | 7G7559 | CR4056 | B01089L1M00 | ||
D8K | 7S9041 | SF | 6P4897 | CR2798 | A0108000M00 | 1” Coll. Bolts |
7S9042 | DF | 6P4898 | CR2782 | B0108000M00 | 1” Coll. Bolts | |
9P2663 | CR | 8M0380, 7M5202, 8P6256 | CR3512 | C0108100M00 | ||
D9N | 7T1258 | SF | 1043495, 1969955 | CR4672 | A01099N1M00 | |
7T1253 | DF | 1043496, 1969954 | CR4673 | B01099N1M00 | ||
D9L | 6Y2950 | SF | 7T1831, 9G8641 | CR4234 | A01099LAM00 | |
6Y2951 | DF | 9G8642 | CR3756 | B01099LAM00 | ||
D9H | 8P5605 | SF | 7S7672 | CR4291 | A01090C0M00 | |
8P5604 | DF | 7S7673 | CR4292 | B01090C0M00 | ||
7M5288 | CR | 3P3403 | CR3518 | C01091E0M00 | ||
D10N | 7T0682 | SF | 6Y0889, 1253268 | CR5041 | A01109NCM00 | |
7T0687 | DF | 6Y0890, 1253270 | CR5043 | B01109NCM00 | ||
Caterpillar Excavators | ||||||
320 | 1175045 | SF | 8E5034, 1634143 | CR5572 | A7820000M00 | Also E200 |
8E5600 | CR | CR5592 | C7820100M00 | Also E200 | ||
322 | 1634145 | SF | 6I9396 | CR5726 | A0122000M00 | |
325 | 1175046 | SF | 6Y1057, 1634147 | CR5525 | A01250C0M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
330 | 1175047 | SF | 6Y2795, 1634149,1503987 | CR5897 | A0130000M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
340, 345 | 1787293 | SF | 1524128, 1486522 | CR6590 | - | |
1247280 | CR | CR6596 | - | |||
350 | 1890475 | SF | 1524129 | CR6401 | ||
8E4623 | CR | CR6400 | ||||
307, 307B | 1273806 | SF | - | - | ||
1028076 | CR | |||||
312, 311 | 1519747 | SF | 4I7346, 861934 | CR5108 | - | |
4I7345 | CR | 990178, 990179 | ||||
215, 225 | 7T6394 | SF | 8E5745 | PC395 | A3208000M00 | |
219, 225 | 8E4573 | SF | 9W6789 | CJ5110 | A0125000M00 | |
205 (B4) | 8E7494 | SF | 7T6395, 5W4144 | PC377 | A1404000M00 |
