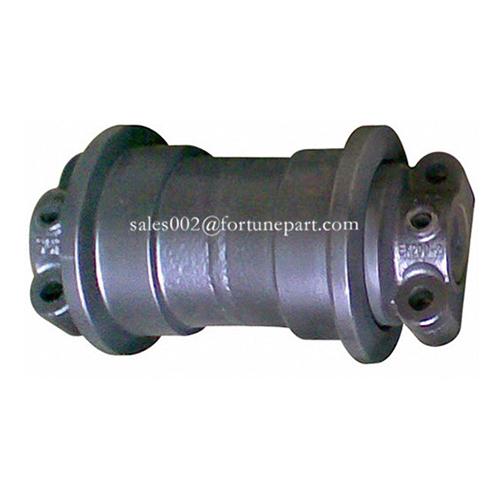

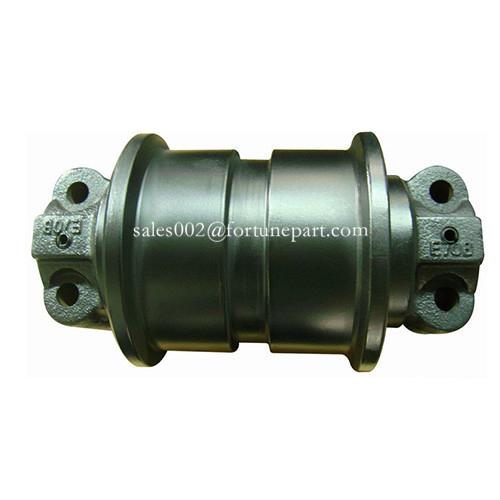

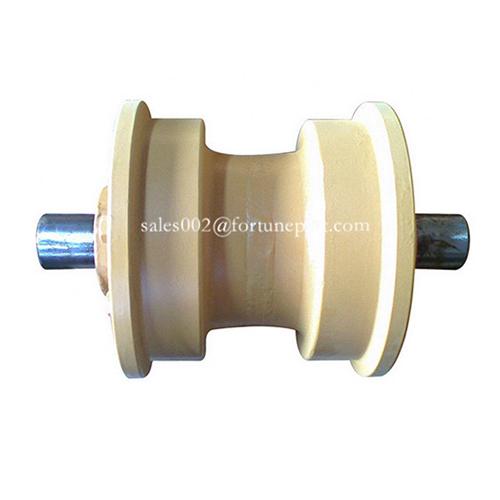

Kato excavator HD700 HD770 HD1250 undercarriage parts bottom track roller for heavy equipment
Our Kato excavator track rollers Use advance machining centre,horizontal and vertical CNC machining to execute process such as machining,drilling,threading and milling to ensure the qualty and precision of each component to ensure the accuracy of assembly dimension,to maximize the life span of each component and minimize production cost per hour.
Xiamen Fortune Industrial Co., Limited | |
Product Name | Kato excavator undercarriage spare parts track roller/lower roller/bottom roller |
Production Standard | ITR production standard and OEM installment size |
Material | 50Mn and 40MnB and 42MnB purchased from first class steel plant |
Finish | Smooth |
Painting Color | Black or yellow |
Process | Forging |
Surface Hardness | HRC52-58, Depth:8mm-12mm |
Quality Guarantee | One Year |
Certification | ISO9001-9002 |
Delivery Time | Within 10--20 days after advance payment receive |
Package | Fumigate seaworthy packing and Export Standard Package |
Payment Term | TT, L/C, Paypal, Western union,D/P |
Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
Kato excavator undercarriage parts lower Roller advantage(Why Choose ours) |
1.Good lubricated oil recycle system |
2. High hardness :HRC52-58,deepth:8mm-12mm |
3. Deep hardened wear surface |
4. Good bronze bushings |
5.Strict Quality Control |
6.OEM mounting dimension |
7.Certificated by ISO9001:2008 |
8.Produce as per client's samples,designs and drawings |
Kato excavator bottom roller inner structure
Kato tractor spare parts bottom track roller production main certificate
Construction equipment undercarriage parts track roller manufacturer

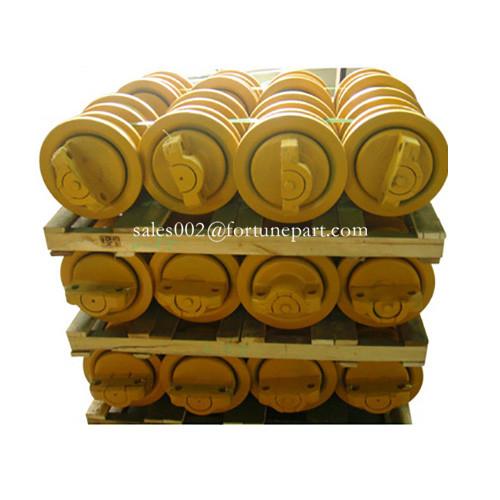

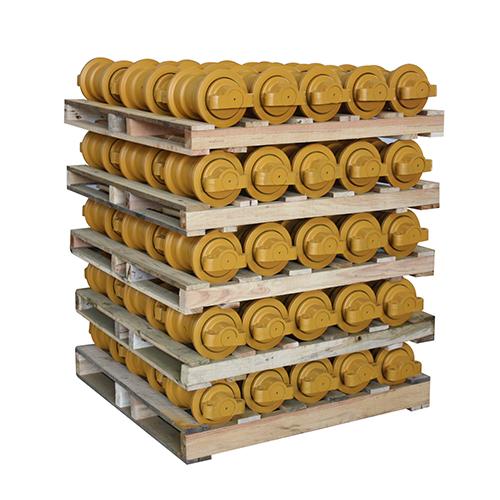

Hot selling construction equipment crawler undercarriage parts
Caterpillar Excavator and bulldozer undercarriage parts lower track roller OEM part number and Berco number list
Rollers(CR=carrier roller, SF=Single Flange track roller, DF=Double Flange track roller) | ||||||
Application | Usco Part No | Pos | Alternative Nos. | Berco Ref | ITM Ref | Notes |
Caterpillar Bulldozers | ||||||
D3, D3B, 931 | 6S3607 | SF | 3T4352 | CR3000 | A01030A0M00 | |
6S3608 | DF | 3T4353 | CR3001 | B01030A0M00 | ||
6S3609 | CR | CR3002 | C0103100N00 | |||
D4D, D4E, 933 | 9P7783 | SF | 1181608, 7K8095, 6T9887 | CR1328 | A0104000M00 | |
9P7787 | DF | 1181609, 7K8096, 6T9883 | CR1329 | B0104000M00 | ||
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D5M, D4H, 943 | 1248237 | SF | 7G4836 | CR6150 | A01040L0M00 | With Collars |
1248240 | DF | 7G4837 | CR6151 | B01040L0M00 | With Collars | |
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D6M, D5B,D5H, 955H/K & 953 | 1210824 | SF | 9P1368, 6T9879, 9S9539 | CR6152 | A01050L1M00 | With Collars |
1210827 | DF | 9P1363, 6T9875, 9S9538 | CR6153 | B01050L1M00 | With Collars | |
9S3570 | CR | 5A8374 | CR2881 | C0105100M00 | For D5B, 953 | |
6Y3908 | CR | CR4799 | C01051H0M00 | For 5H, D6M | ||
D6H, D6R, 963 | 1205746 | SF | 7T4102, 1254175 | CR6088 | A01060L0M00 | With Collars |
1205766 | DF | 7T4107, 1254176 | CR6089 | B01060L0M00 | With Collars | |
6Y1781 | CR | CR4800 | C01061H0M00 | |||
D6D | 7G0421 | SF | 1181617, 9G8029 | CR3634 | A01060D0M00 | ¾” Coll Bolts |
7G0423 | DF | 1181618, 9G8034 | CR3635 | B01060D0M00 | ¾” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D6C, 955K/L | 9S9403 | DF | 1181614, 6Y2901, 9G8099 | CR1793 | A0106000M00 | 5/8” Coll Bolts |
9S9404 | DF | 1181615, 6Y2903, 9G8098 | CR1792 | B0106000M00 | 5/8” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D7H, D7R | 1248250 | SF | 9W5586, 6T9871 | - | - | With Collars |
1248253 | DF | 9W5585, 6T9867 | - | - | With Collars | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7F,D7G,977L | 9S0316 | SF | 1181623, 4S9051 | CR2617 | A01070A0M00 | 7/8” Coll. Bolts |
9S0317 | DF | 1181625, 8S2933 | CR2615 | B01070A0M00 | 7/8” Coll. Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7E | 9S7284 | SF | 1P9100, 9S7388 | CR1652/1 | A107001M00 | ¾” Bolts |
9S7286 | DF | 1P9102, 9S7387 | CR1652/2 | B107001M00 | ¾” Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D8N | 1969947 | SF | 9W8705, 1327928, 7T9188 | CR4528 | A01089L1M00 | |
1969946 | DF | 9W8706, 1327929, 7T9193 | CR4529 | B01089L1M00 | ||
D8L | 9W7826 | SF | 7G7594 | CR4504 | A01089L1M00 | |
9W7827 | DF | 7G7559 | CR4056 | B01089L1M00 | ||
D8K | 7S9041 | SF | 6P4897 | CR2798 | A0108000M00 | 1” Coll. Bolts |
7S9042 | DF | 6P4898 | CR2782 | B0108000M00 | 1” Coll. Bolts | |
9P2663 | CR | 8M0380, 7M5202, 8P6256 | CR3512 | C0108100M00 | ||
D9N | 7T1258 | SF | 1043495, 1969955 | CR4672 | A01099N1M00 | |
7T1253 | DF | 1043496, 1969954 | CR4673 | B01099N1M00 | ||
D9L | 6Y2950 | SF | 7T1831, 9G8641 | CR4234 | A01099LAM00 | |
6Y2951 | DF | 9G8642 | CR3756 | B01099LAM00 | ||
D9H | 8P5605 | SF | 7S7672 | CR4291 | A01090C0M00 | |
8P5604 | DF | 7S7673 | CR4292 | B01090C0M00 | ||
7M5288 | CR | 3P3403 | CR3518 | C01091E0M00 | ||
D10N | 7T0682 | SF | 6Y0889, 1253268 | CR5041 | A01109NCM00 | |
7T0687 | DF | 6Y0890, 1253270 | CR5043 | B01109NCM00 | ||
Caterpillar Excavators | ||||||
320 | 1175045 | SF | 8E5034, 1634143 | CR5572 | A7820000M00 | Also E200 |
8E5600 | CR | CR5592 | C7820100M00 | Also E200 | ||
322 | 1634145 | SF | 6I9396 | CR5726 | A0122000M00 | |
325 | 1175046 | SF | 6Y1057, 1634147 | CR5525 | A01250C0M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
330 | 1175047 | SF | 6Y2795, 1634149,1503987 | CR5897 | A0130000M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
340, 345 | 1787293 | SF | 1524128, 1486522 | CR6590 | - | |
1247280 | CR | CR6596 | - | |||
350 | 1890475 | SF | 1524129 | CR6401 | ||
8E4623 | CR | CR6400 | ||||
307, 307B | 1273806 | SF | - | - | ||
1028076 | CR | |||||
312, 311 | 1519747 | SF | 4I7346, 861934 | CR5108 | - | |
4I7345 | CR | 990178, 990179 | ||||
215, 225 | 7T6394 | SF | 8E5745 | PC395 | A3208000M00 | |
219, 225 | 8E4573 | SF | 9W6789 | CJ5110 | A0125000M00 | |
205 (B4) | 8E7494 | SF | 7T6395, 5W4144 | PC377 | A1404000M00 |
