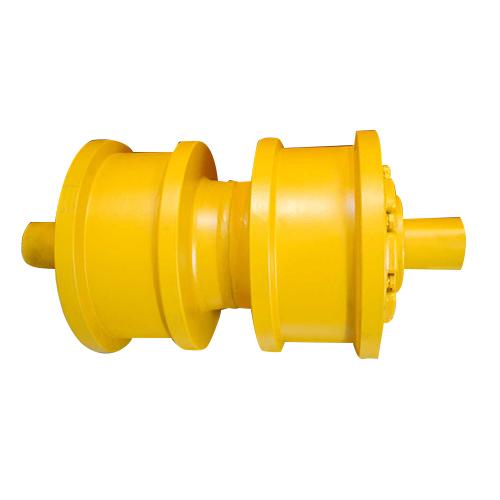

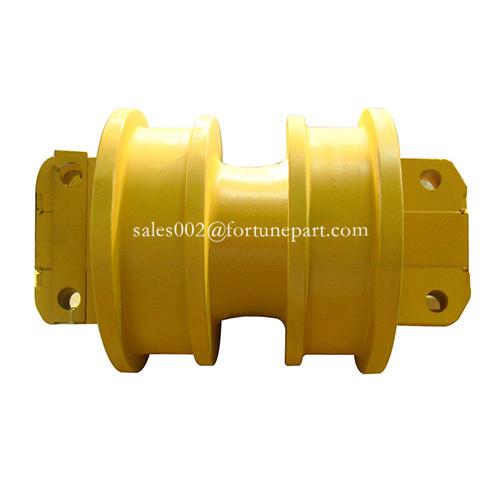

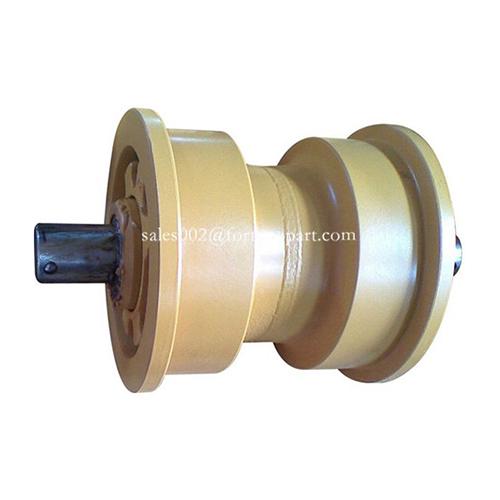

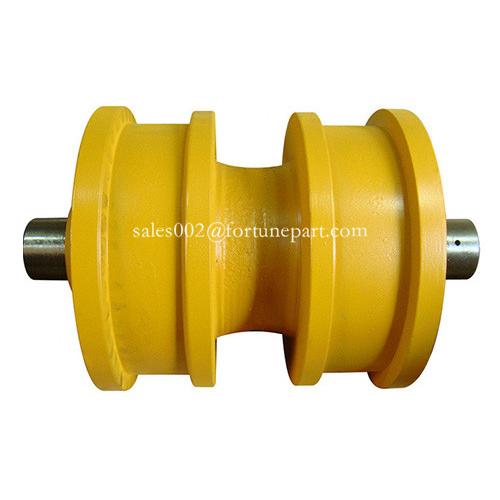

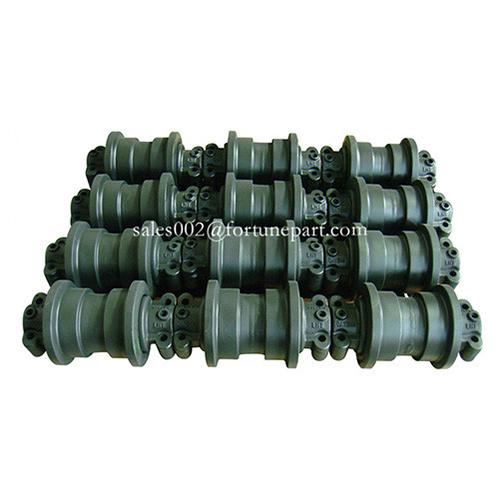

Caterpillar loaders CAT963LGP 963 D6D D6E undercarriage parts bottom track roller for construction equipment
FT loaders track rollers are developed with the highest-quality materials in an efficient, quality controlled manufacturing environment. This product line serves the heavy equipment and industrial markets with track / carrier rollers for machinery such as excavators, bulldozers, mini excavators and compact track loaders.
CAT963LGP loader track roller single flange part number 7G0423,Berco number:CR3634
CAT963LGP loader track roller double flange part number 7G0421,Bercoa number:CR3635
Xiamen Fortune Industrial Co., Limited | |
Product Name | Caterpillar loaders undercarriage spare parts track roller/lower roller/bottom roller |
Production Standard | ITR production standard and OEM installment size |
Material | 50Mn and 40MnB and 42MnB purchased from first class steel plant |
Finish | Smooth |
Painting Color | Black or yellow |
Process | Forging |
Surface Hardness | HRC52-58, Depth:8mm-12mm |
Quality Guarantee | One Year |
Certification | ISO9001-9002 |
Delivery Time | Within 10--20 days after advance payment receive |
Package | Fumigate seaworthy packing and Export Standard Package |
Payment Term | TT, L/C, Paypal, Western union,D/P |
Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
Caterpillar loaders undercarriage parts lower Roller advantage(Why Choose ours) |
1.Good lubricated oil recycle system |
2. High hardness :HRC52-58,deepth:8mm-12mm |
3. Deep hardened wear surface |
4. Good bronze bushings |
5.Strict Quality Control |
6.OEM mounting dimension |
7.Certificated by ISO9001:2008 |
8.Produce as per client's samples,designs and drawings |
Caterpillar loaders bottom roller inner structure
Caterpillar loader spare parts bottom track roller production main certificate
Construction equipment undercarriage parts track roller manufacturer
Hot selling construction equipment crawler undercarriage parts
Caterpillar Excavator and bulldozer undercarriage parts lower track roller OEM part number and Berco number list
Rollers(CR=carrier roller, SF=Single Flange track roller, DF=Double Flange track roller) | ||||||
Application | Usco Part No | Pos | Alternative Nos. | Berco Ref | ITM Ref | Notes |
Caterpillar Bulldozers | ||||||
D3, D3B, 931 | 6S3607 | SF | 3T4352 | CR3000 | A01030A0M00 | |
6S3608 | DF | 3T4353 | CR3001 | B01030A0M00 | ||
6S3609 | CR | CR3002 | C0103100N00 | |||
D4D, D4E, 933 | 9P7783 | SF | 1181608, 7K8095, 6T9887 | CR1328 | A0104000M00 | |
9P7787 | DF | 1181609, 7K8096, 6T9883 | CR1329 | B0104000M00 | ||
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D5M, D4H, 943 | 1248237 | SF | 7G4836 | CR6150 | A01040L0M00 | With Collars |
1248240 | DF | 7G4837 | CR6151 | B01040L0M00 | With Collars | |
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D6M, D5B,D5H, 955H/K & 953 | 1210824 | SF | 9P1368, 6T9879, 9S9539 | CR6152 | A01050L1M00 | With Collars |
1210827 | DF | 9P1363, 6T9875, 9S9538 | CR6153 | B01050L1M00 | With Collars | |
9S3570 | CR | 5A8374 | CR2881 | C0105100M00 | For D5B, 953 | |
6Y3908 | CR | CR4799 | C01051H0M00 | For 5H, D6M | ||
D6H, D6R, 963 | 1205746 | SF | 7T4102, 1254175 | CR6088 | A01060L0M00 | With Collars |
1205766 | DF | 7T4107, 1254176 | CR6089 | B01060L0M00 | With Collars | |
6Y1781 | CR | CR4800 | C01061H0M00 | |||
D6D | 7G0421 | SF | 1181617, 9G8029 | CR3634 | A01060D0M00 | ¾” Coll Bolts |
7G0423 | DF | 1181618, 9G8034 | CR3635 | B01060D0M00 | ¾” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D6C, 955K/L | 9S9403 | DF | 1181614, 6Y2901, 9G8099 | CR1793 | A0106000M00 | 5/8” Coll Bolts |
9S9404 | DF | 1181615, 6Y2903, 9G8098 | CR1792 | B0106000M00 | 5/8” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D7H, D7R | 1248250 | SF | 9W5586, 6T9871 | - | - | With Collars |
1248253 | DF | 9W5585, 6T9867 | - | - | With Collars | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7F,D7G,977L | 9S0316 | SF | 1181623, 4S9051 | CR2617 | A01070A0M00 | 7/8” Coll. Bolts |
9S0317 | DF | 1181625, 8S2933 | CR2615 | B01070A0M00 | 7/8” Coll. Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7E | 9S7284 | SF | 1P9100, 9S7388 | CR1652/1 | A107001M00 | ¾” Bolts |
9S7286 | DF | 1P9102, 9S7387 | CR1652/2 | B107001M00 | ¾” Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D8N | 1969947 | SF | 9W8705, 1327928, 7T9188 | CR4528 | A01089L1M00 | |
1969946 | DF | 9W8706, 1327929, 7T9193 | CR4529 | B01089L1M00 | ||
D8L | 9W7826 | SF | 7G7594 | CR4504 | A01089L1M00 | |
9W7827 | DF | 7G7559 | CR4056 | B01089L1M00 | ||
D8K | 7S9041 | SF | 6P4897 | CR2798 | A0108000M00 | 1” Coll. Bolts |
7S9042 | DF | 6P4898 | CR2782 | B0108000M00 | 1” Coll. Bolts | |
9P2663 | CR | 8M0380, 7M5202, 8P6256 | CR3512 | C0108100M00 | ||
D9N | 7T1258 | SF | 1043495, 1969955 | CR4672 | A01099N1M00 | |
7T1253 | DF | 1043496, 1969954 | CR4673 | B01099N1M00 | ||
D9L | 6Y2950 | SF | 7T1831, 9G8641 | CR4234 | A01099LAM00 | |
6Y2951 | DF | 9G8642 | CR3756 | B01099LAM00 | ||
D9H | 8P5605 | SF | 7S7672 | CR4291 | A01090C0M00 | |
8P5604 | DF | 7S7673 | CR4292 | B01090C0M00 | ||
7M5288 | CR | 3P3403 | CR3518 | C01091E0M00 | ||
D10N | 7T0682 | SF | 6Y0889, 1253268 | CR5041 | A01109NCM00 | |
7T0687 | DF | 6Y0890, 1253270 | CR5043 | B01109NCM00 | ||
Caterpillar Excavators | ||||||
320 | 1175045 | SF | 8E5034, 1634143 | CR5572 | A7820000M00 | Also E200 |
8E5600 | CR | CR5592 | C7820100M00 | Also E200 | ||
322 | 1634145 | SF | 6I9396 | CR5726 | A0122000M00 | |
325 | 1175046 | SF | 6Y1057, 1634147 | CR5525 | A01250C0M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
330 | 1175047 | SF | 6Y2795, 1634149,1503987 | CR5897 | A0130000M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
340, 345 | 1787293 | SF | 1524128, 1486522 | CR6590 | - | |
1247280 | CR | CR6596 | - | |||
350 | 1890475 | SF | 1524129 | CR6401 | ||
8E4623 | CR | CR6400 | ||||
307, 307B | 1273806 | SF | - | - | ||
1028076 | CR | |||||
312, 311 | 1519747 | SF | 4I7346, 861934 | CR5108 | - | |
4I7345 | CR | 990178, 990179 | ||||
215, 225 | 7T6394 | SF | 8E5745 | PC395 | A3208000M00 | |
219, 225 | 8E4573 | SF | 9W6789 | CJ5110 | A0125000M00 | |
205 (B4) | 8E7494 | SF | 7T6395, 5W4144 | PC377 | A1404000M00 |
