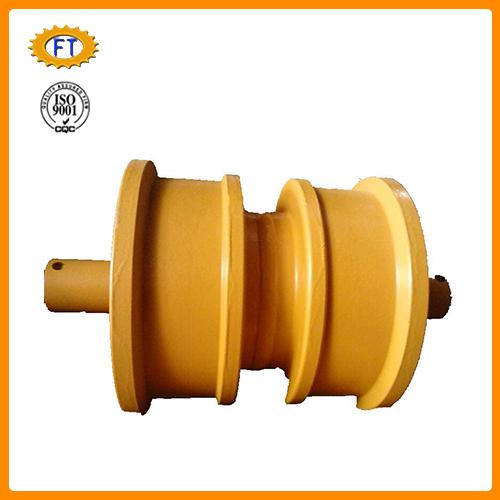

Volvo excavator EC210BLC EC240B EC360B EC480DL undercarriage parts bottom track roller for heavy equipment
Our Volvo excavator track roller use conical sealing and lifelong lubrication designing enable the lower roller to have longer service life and perfect performance in any circumstances.
The shell made by hot forging treatment obtains superior structure of internal materials and fiber
Xiamen Fortune Industrial Co., Limited | |
Product Name | Volvo excavator undercarriage spare parts track roller/lower roller/bottom roller |
Production Standard | ITR production standard and OEM installment size |
Material | 50Mn and 40MnB and 42MnB purchased from first class steel plant |
Finish | Smooth |
Painting Color | Black or yellow |
Process | Forging |
Surface Hardness | HRC52-58, Depth:8mm-12mm |
Quality Guarantee | One Year |
Certification | ISO9001-9002 |
Delivery Time | Within 10--20 days after advance payment receive |
Package | Fumigate seaworthy packing and Export Standard Package |
Payment Term | TT, L/C, Paypal, Western union,D/P |
Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
Volvo excavator undercarriage parts lower Roller advantage(Why Choose ours) |
1.Good lubricated oil recycle system |
2. High hardness :HRC52-58,deepth:8mm-12mm |
3. Deep hardened wear surface |
4. Good bronze bushings |
5.Strict Quality Control |
6.OEM mounting dimension |
7.Certificated by ISO9001:2008 |
8.Produce as per client's samples,designs and drawings |

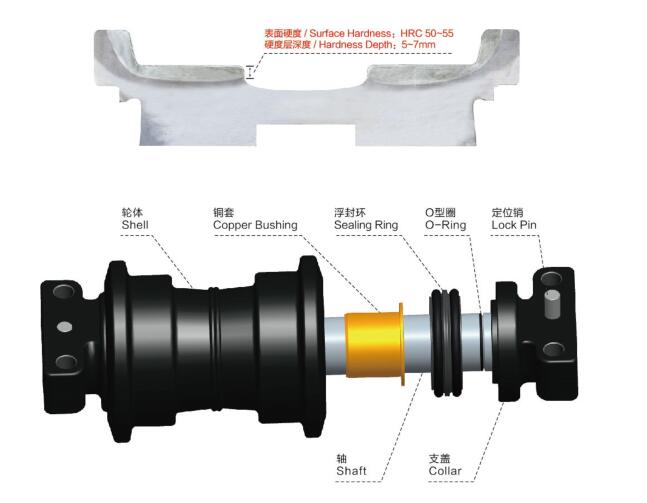

Volvo excavator bottom roller inner structure
Volvo tractor spare parts bottom track roller production main certificate

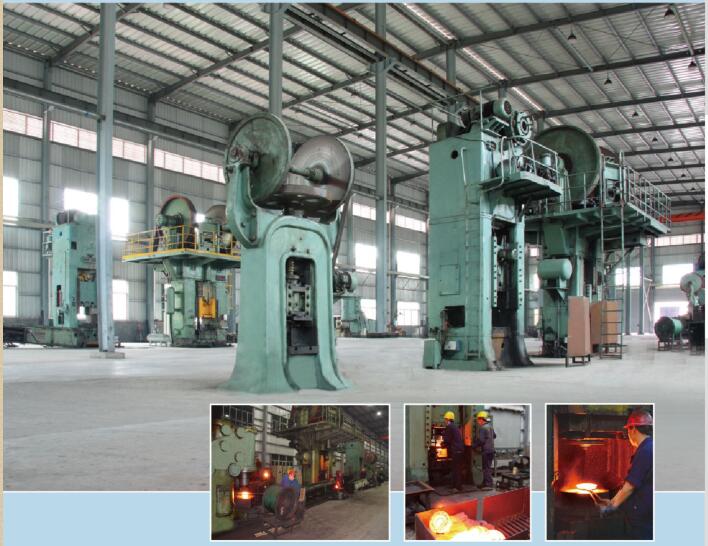

Construction equipment undercarriage parts track roller factory

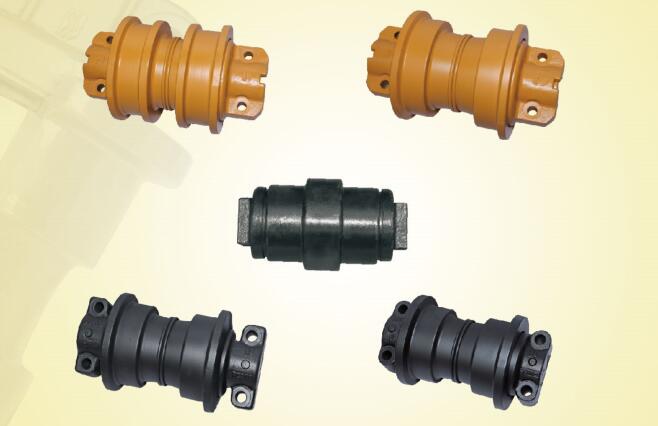

Hot selling construction equipment crawler undercarriage parts
Caterpillar Excavator and bulldozer undercarriage parts lower track roller OEM part number and Berco number list
Rollers(CR=carrier roller, SF=Single Flange track roller, DF=Double Flange track roller) | ||||||
Application | Usco Part No | Pos | Alternative Nos. | Berco Ref | ITM Ref | Notes |
Caterpillar Bulldozers | ||||||
D3, D3B, 931 | 6S3607 | SF | 3T4352 | CR3000 | A01030A0M00 | |
6S3608 | DF | 3T4353 | CR3001 | B01030A0M00 | ||
6S3609 | CR | CR3002 | C0103100N00 | |||
D4D, D4E, 933 | 9P7783 | SF | 1181608, 7K8095, 6T9887 | CR1328 | A0104000M00 | |
9P7787 | DF | 1181609, 7K8096, 6T9883 | CR1329 | B0104000M00 | ||
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D5M, D4H, 943 | 1248237 | SF | 7G4836 | CR6150 | A01040L0M00 | With Collars |
1248240 | DF | 7G4837 | CR6151 | B01040L0M00 | With Collars | |
6K9879 | CR | 6K9880 | CR2880 | C0104100M00 | ||
D6M, D5B,D5H, 955H/K & 953 | 1210824 | SF | 9P1368, 6T9879, 9S9539 | CR6152 | A01050L1M00 | With Collars |
1210827 | DF | 9P1363, 6T9875, 9S9538 | CR6153 | B01050L1M00 | With Collars | |
9S3570 | CR | 5A8374 | CR2881 | C0105100M00 | For D5B, 953 | |
6Y3908 | CR | CR4799 | C01051H0M00 | For 5H, D6M | ||
D6H, D6R, 963 | 1205746 | SF | 7T4102, 1254175 | CR6088 | A01060L0M00 | With Collars |
1205766 | DF | 7T4107, 1254176 | CR6089 | B01060L0M00 | With Collars | |
6Y1781 | CR | CR4800 | C01061H0M00 | |||
D6D | 7G0421 | SF | 1181617, 9G8029 | CR3634 | A01060D0M00 | ¾” Coll Bolts |
7G0423 | DF | 1181618, 9G8034 | CR3635 | B01060D0M00 | ¾” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D6C, 955K/L | 9S9403 | DF | 1181614, 6Y2901, 9G8099 | CR1793 | A0106000M00 | 5/8” Coll Bolts |
9S9404 | DF | 1181615, 6Y2903, 9G8098 | CR1792 | B0106000M00 | 5/8” Coll Bolts | |
9S2730 | CR | 3T3206 | CR2650 | C0106100M00 | ||
D7H, D7R | 1248250 | SF | 9W5586, 6T9871 | - | - | With Collars |
1248253 | DF | 9W5585, 6T9867 | - | - | With Collars | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7F,D7G,977L | 9S0316 | SF | 1181623, 4S9051 | CR2617 | A01070A0M00 | 7/8” Coll. Bolts |
9S0317 | DF | 1181625, 8S2933 | CR2615 | B01070A0M00 | 7/8” Coll. Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D7E | 9S7284 | SF | 1P9100, 9S7388 | CR1652/1 | A107001M00 | ¾” Bolts |
9S7286 | DF | 1P9102, 9S7387 | CR1652/2 | B107001M00 | ¾” Bolts | |
9M0638 | CR | 1P8717 | CR2876 | C0107100M00 | ||
D8N | 1969947 | SF | 9W8705, 1327928, 7T9188 | CR4528 | A01089L1M00 | |
1969946 | DF | 9W8706, 1327929, 7T9193 | CR4529 | B01089L1M00 | ||
D8L | 9W7826 | SF | 7G7594 | CR4504 | A01089L1M00 | |
9W7827 | DF | 7G7559 | CR4056 | B01089L1M00 | ||
D8K | 7S9041 | SF | 6P4897 | CR2798 | A0108000M00 | 1” Coll. Bolts |
7S9042 | DF | 6P4898 | CR2782 | B0108000M00 | 1” Coll. Bolts | |
9P2663 | CR | 8M0380, 7M5202, 8P6256 | CR3512 | C0108100M00 | ||
D9N | 7T1258 | SF | 1043495, 1969955 | CR4672 | A01099N1M00 | |
7T1253 | DF | 1043496, 1969954 | CR4673 | B01099N1M00 | ||
D9L | 6Y2950 | SF | 7T1831, 9G8641 | CR4234 | A01099LAM00 | |
6Y2951 | DF | 9G8642 | CR3756 | B01099LAM00 | ||
D9H | 8P5605 | SF | 7S7672 | CR4291 | A01090C0M00 | |
8P5604 | DF | 7S7673 | CR4292 | B01090C0M00 | ||
7M5288 | CR | 3P3403 | CR3518 | C01091E0M00 | ||
D10N | 7T0682 | SF | 6Y0889, 1253268 | CR5041 | A01109NCM00 | |
7T0687 | DF | 6Y0890, 1253270 | CR5043 | B01109NCM00 | ||
Caterpillar Excavators | ||||||
320 | 1175045 | SF | 8E5034, 1634143 | CR5572 | A7820000M00 | Also E200 |
8E5600 | CR | CR5592 | C7820100M00 | Also E200 | ||
322 | 1634145 | SF | 6I9396 | CR5726 | A0122000M00 | |
325 | 1175046 | SF | 6Y1057, 1634147 | CR5525 | A01250C0M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
330 | 1175047 | SF | 6Y2795, 1634149,1503987 | CR5897 | A0130000M00 | |
6Y5323 | CR | 6Y8080, 6Y8227 | CR5595 | C0125100M00 | ||
340, 345 | 1787293 | SF | 1524128, 1486522 | CR6590 | - | |
1247280 | CR | CR6596 | - | |||
350 | 1890475 | SF | 1524129 | CR6401 | ||
8E4623 | CR | CR6400 | ||||
307, 307B | 1273806 | SF | - | - | ||
1028076 | CR | |||||
312, 311 | 1519747 | SF | 4I7346, 861934 | CR5108 | - | |
4I7345 | CR | 990178, 990179 | ||||
215, 225 | 7T6394 | SF | 8E5745 | PC395 | A3208000M00 | |
219, 225 | 8E4573 | SF | 9W6789 | CJ5110 | A0125000M00 | |
205 (B4) | 8E7494 | SF | 7T6395, 5W4144 | PC377 | A1404000M00 |
