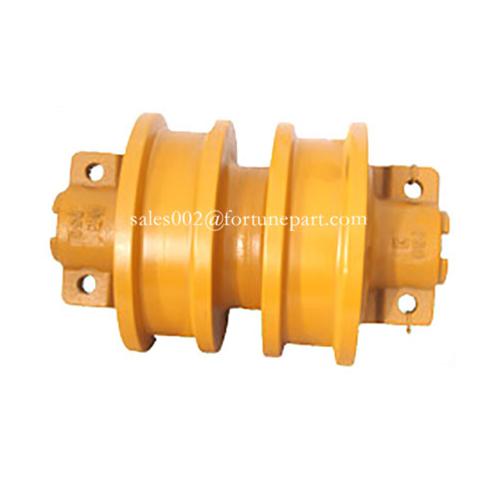

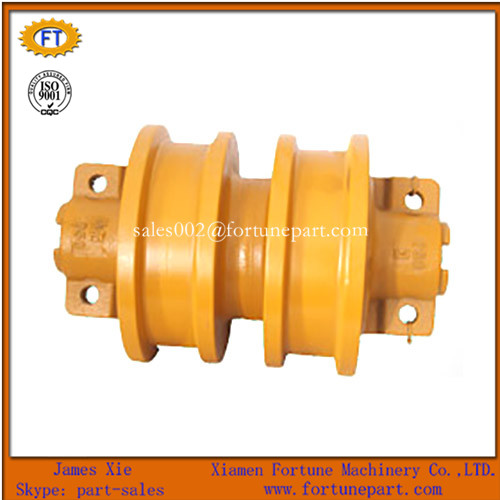

Komatsu tractor heavy equipment D65EX-12 D50 undercarriage parts lower track roller for excavator track repair and after market replacement
Excavator Track roller has different names Excavator bottom roller and Tractor lower roller.

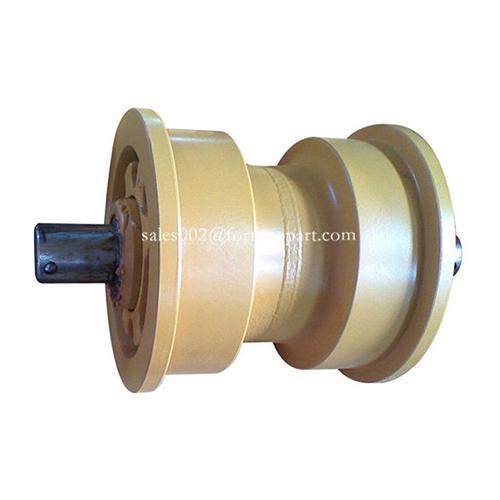

Dozer track roller has two kinds.one is track roller single flange,the other type is track roller double flange,
Komatsu excavator bottom roller can be used for crawler heavy machine and crane undercarriage, such as Caterpillar,Komatsu, Hitachi,Doosan, Volvo,Kobelco,Daewoo,JCB, John Deere,Kubota,Hyundai,Sumitomo,Kato,Fiat-Hitachi,Samsung,Liebherr,Yanmar, and so on.
Xiamen Fortune Industrial Co., Limited | |
Product Name | Komatsu excavator and bulldozer undercarriage spare parts track roller/lower roller/bottom roller |
Production Standard | ITR production standard and OEM installment size |
Material | 50Mn and 40MnB and 42MnB |
Finish | Smooth |
Painting Color | Black or yellow |
Process | Forging and casting |
Surface Hardness | HRC48-54, Depth:4mm-10mm |
Quality Guarantee | One Year |
Certification | ISO9001-9002 |
Delivery Time | Within 10--20 days after advance payment receive |

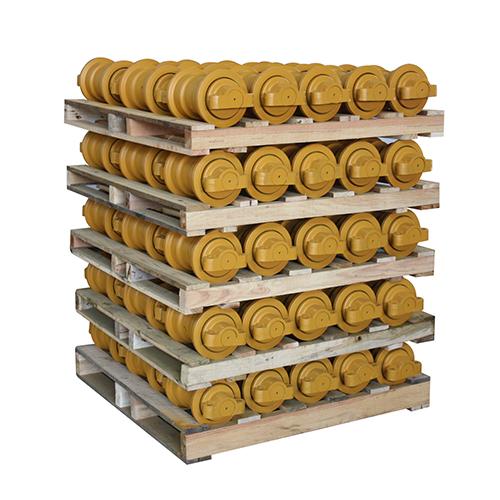

Package | Fumigate seaworthy packing and Export Standard Package |
Payment Term | TT, L/C, Paypal, Western union,D/P |
Business Scope | excavator and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground engage tools, etc |
Our undercarriage parts Track Roller advantage(Why Choose ours) |
1.Good lubricated oil recycle system |
2. High hardness :HRC52-58,deepth:8mm-12mm |
3. Deep hardened wear surface |
4. Good bronze bushings |
5.Strict Quality Control |
6.OEM mounting dimension |
7.Certificated by ISO9001:2008 |
8.Produce as per client's samples,designs and drawings |
Track Roller Main Features:
1.Forged from deep hardening steel and heart treated for internal strength to resist bell mounting and to increase rebuilding ability.
two pieces roller shell rim. Heat treated shells for body strength and longer wear life.
Heat treated for a deep uniform hardened depth that provides wear life equal to link wear life.
2.Roller shaft
shaft and bearing designed to carry and turn with heavy track weight forged and heat treated for strength.
Bearing surfaces are hardened and polished to reduce friction and wear
Center flange absorbs side thrust from roller shell.
3.Cast Iron bushing
Supports the bronze sleeve bearing.
Cast from iron to absorb loads without permanent deformation.
Large lubricant reservoir to reduce heat build up
4.Bronzed sleeve bearing
Sleeve design provides a large surface area for better load distribution.
Inner diameter surface is polished to a smooth finish.
Soft bronze coating in the bearing absorbs any small foreign particles before they can damage the shaft and seals.
Excavator and Dozer Lower Roller Functions:
1.Support the track as its most between the sprocket and idler.
2.Guide the track between the sprocket and idler
3.Strength to resist failure before tread wear life is utilized.
4.Treads wear life matched to track links.
5.Treads and flanges rebuild able on forged shells.
6.Thru-hardened flanges to resist bending and improve rebuild ability.
Komatsu Excavator and bulldozer undercarriage parts lower track roller part number and Berco number list
Rollers(CR=carrier roller, SF=Single Flange track roller, DF=Double Flange track roller)
Komatsu Bulldozers
Application
Usco
Part No
Pos
Alternative
Nos.
Berco
Ref
ITM
Ref
Notes
D40, D50
140-30-00053
SF
131-30-000343
KM859
A4060000M00
140-30-00063
DF
131-30-000353
KM860
B4060000M00
141-30-00073
CR
KM103
C4060100M00
D65
141-30-00575
SF
141-30-00576,-00578
KM868
A4065000M00
141-30-00585
DF
141-30-00586,-00588
KM869
B4065000M00
141-30-00563
CR
141-30-00565,-00568
KM118
C40651A0M00
D65E-12 D65EX-12
14X-30-00081
SF
14X-30-00082,-14100
KM2101
A40650E0M00
14X-30-00091
DF
14X-30-00092,-14200
KM2102
B40650E0M00
14X-30-00142
CR
14X-30-00140,-00141
KM2105
C40651E0M00
D85
155-30-00126
SF
155-30-00250, -00127
KM351
A40850A0M00
155-30-00116
DF
155-30-00240,-00117
KM353
B40850A0M00
155-30-00233
CR
155-30-00232,-00234
KM120
C40851A0M00
D155-1 D155-2
175-30-00760
SF
175-30-00484,-00489
KM122
A4015000M00
175-30-00770
DF
175-30-00494,-00499
KM123
B4015000M00
175-30-00515
CR
175-30-00517,-00471
KM124
C40151G0M00
Also
D155AX-3

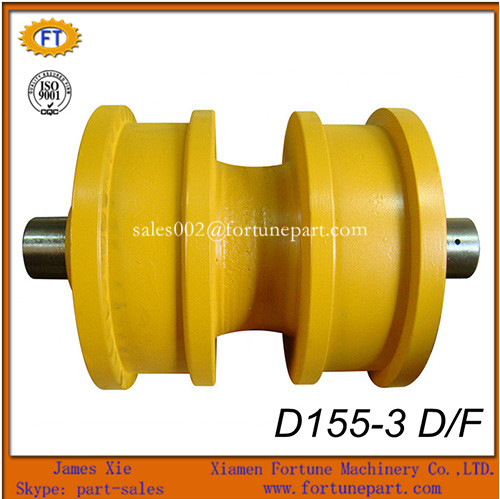

D155-3 D155AX-3
17A-30-00070
SF
KM2265
A40159D0M00
17A-30-00080
DF
KM2266
B40159D0M00
D355
195-30-00335
SF
195-30-00336
KM926
A4035000M00
195-30-00345
DF
195-30-00346
KM927
B4035000M00
195-30-00105
CR
195-30-00106
KM578
C4035100M00
D275
17M-30-00220
SF
17M-30-00230
DF
195-30-00580
CR
KM2160
Also
PC650-5
D375A-1
195-30-00562
SF
195-30-00561
KM1039
195-30-00572
DF
195-30-00571
KM1040
195-30-00580
CR
D375A-2/3
195-30-01051
SF
195-30-01011,-01010
KM1272
A4037000M00
195-30-01061
DF
195-30-01021,-01020
KM1279
B4037000M00
195-30-01041
CR
195-30-01040
KM1281
C4037100M00
Komatsu Excavators

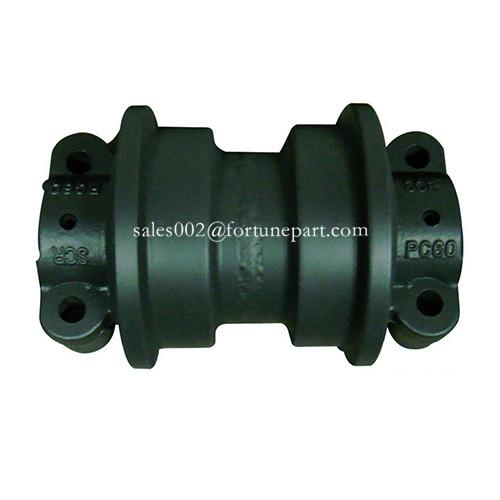

PC60-5/ 6
201-30-00290
SF
201-30-00291
KM1690
PC75, PC95 (B1)
VA380
SF
VA380
A14010B1M00
B14010B1M00
DF
B14010B1M00
PC100-120 FAI
203-30-00222
SF
20E-30-K1580
KM1705
A40120A0M00
PC120-5
203-30-00230
CR
203-30-00150
KM2794
C4012000M00

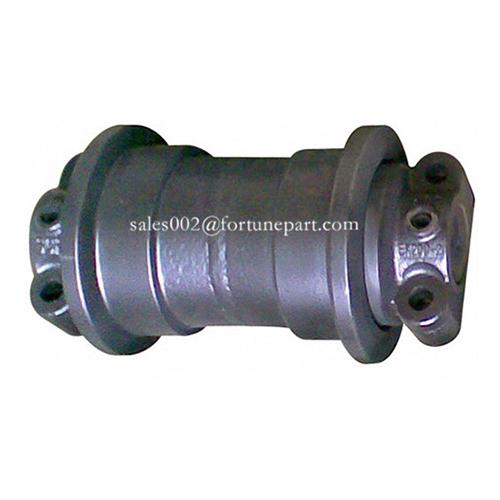

PC200-2/3/5/6 PC220-2/3/5/6 PC210-6
205-30-K1200
CR
20Y-30-00021,-00022
KM1640
C40201A0M00
205-30-00171
SF
205-30-00172,-76101
20Y-30-00130
KM1179
A40200F0M00
PC200-2
& PC220-2
20Y-30-00011
SF
20Y-30-00112,
20Y-30-00014
KM1428
A40200E0M00
PC200-3/5/6
PC220-3/5/6 PC210-6
PC300-3/5
207-30-15102
CR
208-30-00320
207-30-K1800,-16102
207-30-00140
KM1817
C40301B0M00
&
PC400-5
207-30-00150
SF
KM1429
A40300B0M00
PC400-3/5
208-30-00210
SF
KM1743
A4040000M00
PC650-5
209-30-00191
SF
209-30-00121
KM2143
-
PC1000
21N-30-00023
SF
KM2503
21N-30-00030
CR
-
FAQ
1.What Xiamen Fortune Industrial Co.,Limited supply?
We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.
2.How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions
3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
We have an excellent QC system, will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.
4.What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
Choose genuine quality lower track roller for construction machinery parts,
Fortunepart will be your best undercarriage parts supplier in China.
